Spark Plugs And Coils

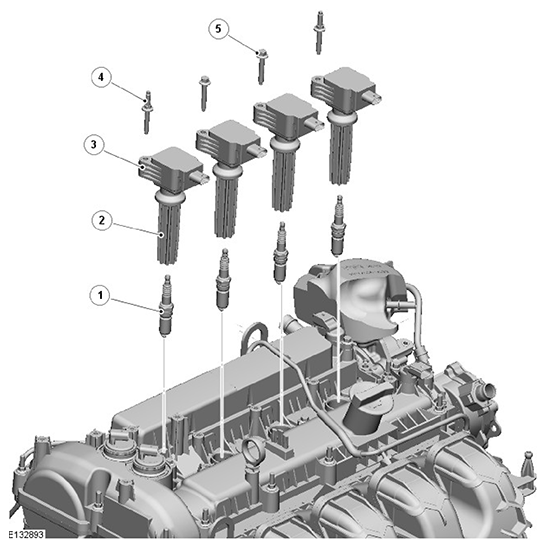

G11587226
ITEM DESCRIPTION
1 Spark plug (4 off)
2 Plug cap (4 off)
3 Ignition coil (4 off)
4 Stud, washer and nut (2 off)
5 Bolt (2 off)

Four spark plugs are located in recessed threaded bosses in the top of the cylinder head. The ignition coil and spark plug cap are combined and are secured in the head with two bolts for the two inner coils and two studs, washers and nuts for the outer coils.
