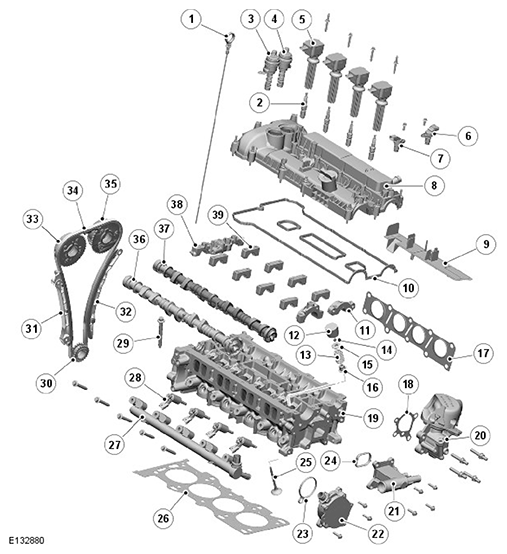

| 1 |
Oil level gauge |
| 2 |
Spark plug (4 off) |
| 3 |
Variable valve timing solenoid valve - Inlet camshaft |
| 4 |
Variable valve timing solenoid valve - Exhaust camshaft |
| 5 |
Ignition coil and plug |
| 6 |
Camshaft Position (CMP) sensor - Exhaust camshaft |
| 7 |
CMP sensor - Inlet camshaft |
| 8 |
Camshaft cover |
| 9 |
Camshaft cover baffle plate |
| 10 |
Gasket - Camshaft cover |
| 11 |
Rear camshaft bearing cap (2 off) |
| 12 |
Hydraulic camshaft follower (16 off) |
| 13 |
Valve spring (16 off) |
| 14 |
Valve spring collet (32 off) |
| 15 |
Valve spring retainer (16 off) |
| 16 |
Valve spring seat and valve stem oil seal (16 off) |
| 17 |
Gasket - Exhaust manifold |
| 18 |
Gasket - High Pressure (HP) fuel pump |
| 19 |
Cylinder head |
| 20 |
HP fuel pump and housing assembly |
| 21 |
Water outlet connection |
| 22 |
Vacuum pump assembly |
| 23 |
Gasket - Vacuum pump |
| 24 |
Gasket - Water inlet |
| 25 |
Valve - (8 off inlet - 8 off exhaust) |
| 26 |
Cylinder head gasket |
| 27 |
Fuel rail |
| 28 |
Fuel injector (4 off) |
| 29 |
Cylinder head bolt (10 off) |
| 30 |
Crankshaft drive gear - Camshaft timing and oil pump chain |
| 31 |
Camshaft timing chain guide |
| 32 |
Camshaft timing chain tensioner arm |
| 33 |
Variable Camshaft Timing (VCT) actuator - Inlet camshaft |
| 34 |
Camshaft timing chain |
| 35 |
VCT actuator - Exhaust camshaft |
| 36 |
Camshaft - Inlet |
| 37 |
Camshaft - Exhaust |
| 38 |
Front camshaft bearing cap |
| 39 |
Camshaft bearing cap (8 off) |
