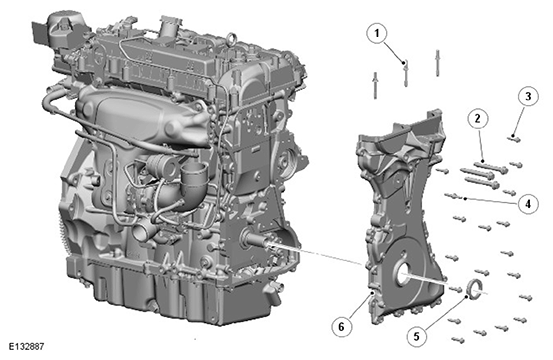

Camshaft Timing Chain Cover
| ITEM | DESCRIPTION |
|---|---|
| 1 | Stud, washer and nut - Camshaft cover (3 off) |
| 2 | Bolt M10 (3 off) |
| 3 | Bolt M6 (16 off) |
| 4 | Stud, washer and nut |
| 5 | Crankshaft oil seal |
| 6 | Cam chain cover |
The cam chain cover is located on the front of the engine and is secured to the cylinder block and cylinder head with sixteen M6 bolts, three M10 bolts and four studs. The cover is sealed to the cylinder block and cylinder head with application of RTV sealer.
The cover housing the front crankshaft oil seal and also provides location for the front engine mounting bracket and damper assembly. Two threaded bosses near the bottom of the cover provide for the attachment of the CKP sensor.
