Water Pump

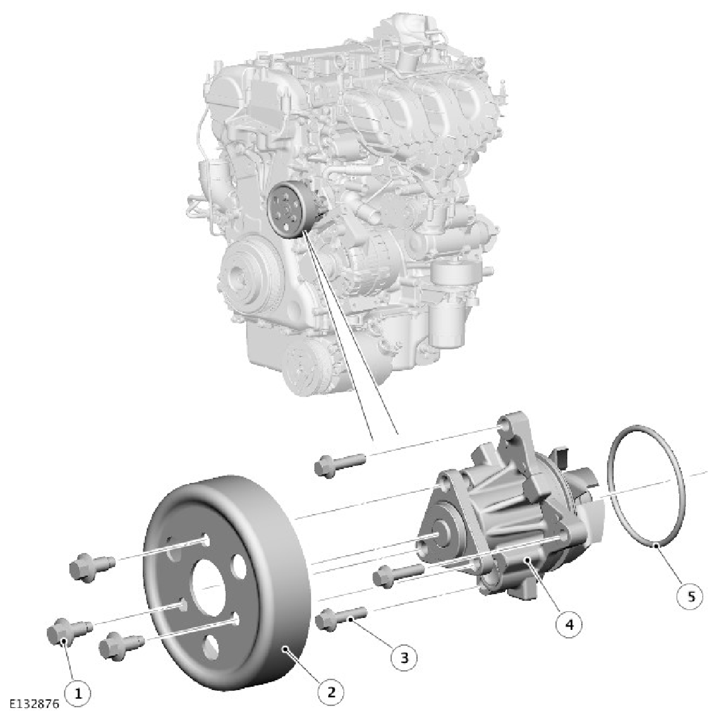

| ITEM | DESCRIPTION |
|---|---|
| 1 | Bolt (3 off) |
| 2 | Pulley |
| 3 | Bolt (3 off) |
| 4 | Water pump assembly |
| 5 | O-ring seal |
The water pump is located in a cavity in the cylinder block on the front upper left side of the cylinder block. The pump is sealed in the block with an O-ring seal and secured with three bolts.
A pulley which drives the pump at engine speed from the auxiliary drive belt is secured to the pump drive flange with three bolts.
