Thermostat Housing

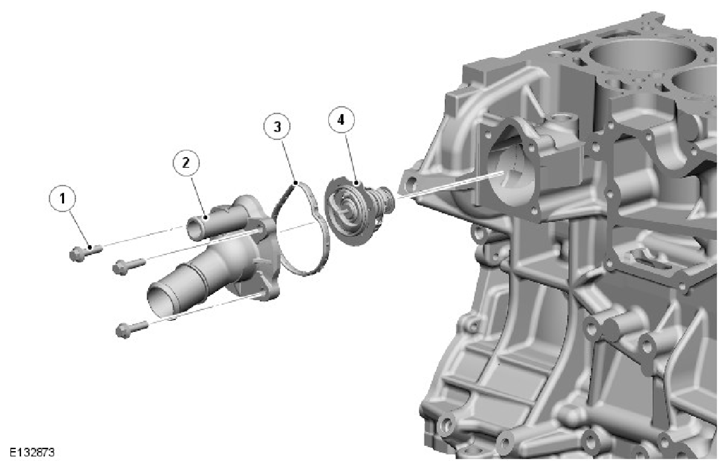

G13001865
ITEM DESCRIPTION
1 Bolt (3 off)
2 Housing
3 Gasket
4 Thermostat

The plastic thermostat housing is located on the front left side of the cylinder block. The housing is secured to the cylinder block with three bolts and sealed with a gasket. The thermostat is contained within the housing

The housing has two hose connections; the larger connection is for the bottom hose from the radiator, the smaller hose is the return from the oil cooler and coolant circulation from the degas tank.
