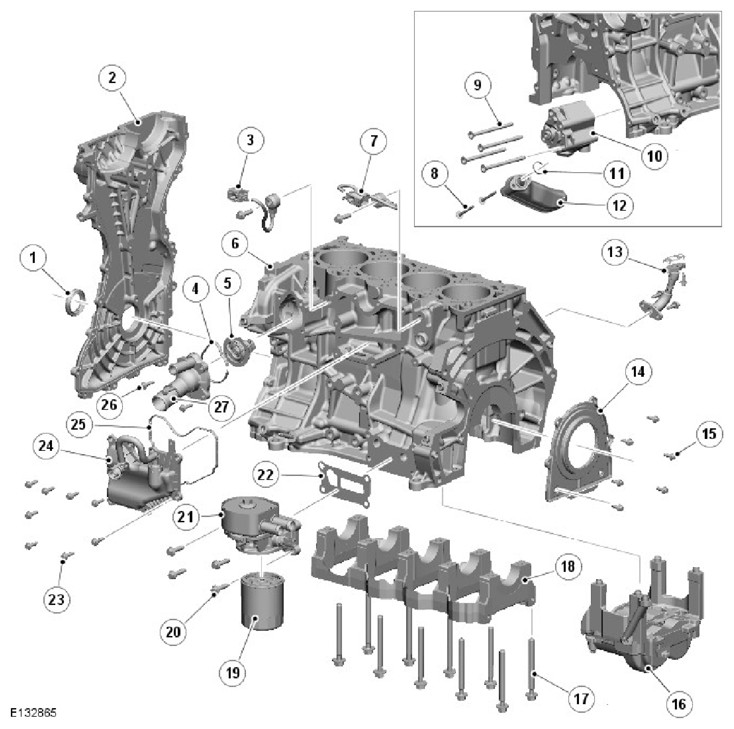

| 1 |
Front crankshaft oil seal |
| 2 |
Front cover assembly |
| 3 |
Knock sensor - Cylinder 1 and 2 |
| 4 |
Gasket - Thermostat housing |
| 5 |
Thermostat |
| 6 |
Cylinder block |
| 7 |
Knock sensor - Cylinder 3 and 4 |
| 8 |
Bolt (2 off) |
| 9 |
Bolt (3 off) |
| 10 |
Oil pump |
| 11 |
Gasket - Oil pump inlet |
| 12 |
Oil pump filter and pick-up assembly |
| 13 |
Turbocharger oil pump return pipe |
| 14 |
Rear crankshaft oil seal and housing |
| 15 |
Screw (6 off) |
| 16 |
Balancer assembly |
| 17 |
Bolt (10 off) |
| 18 |
Engine bulkhead bearing support |
| 19 |
Oil filter |
| 20 |
Screw |
| 21 |
Oil cooler and adaptor |
| 22 |
Gasket - Oil filter adaptor |
| 23 |
Screw (8 off) |
| 24 |
Crankcase ventilation cover |
| 25 |
Gasket - Crankcase ventilation cover |
| 26 |
Screw (6 off) |
| 27 |
Thermostat housing |
