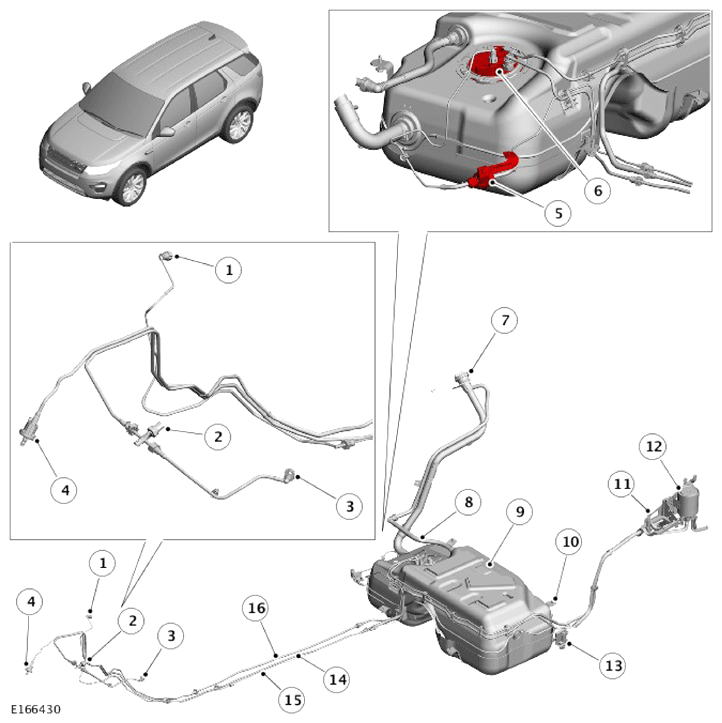

| 1 |
Fuel supply pipe - Fuel Fired Booster Heater (FFBH) (if fitted) |
| 2 |
Fuel Low Pressure (LP) sensor |
| 3 |
Pipe - fuel supply to HP fuel pump |
| 4 |
Purge valve |
| 5 |
FFBH fuel pump (if fitted) |
| 6 |
Fuel pump module |
| 7 |
Fuel filler assembly |
| 8 |
Pipe - fuel tank breather |
| 9 |
Fuel tank assembly |
| 10 |
Fuel tank support strap (2 off) |
| 11 |
Evaporative emissions canister breather |
| 12 |
Evaporative emissions canister |
| 13 |
Fuel Pump Driver Module (FPDM) |
| 14 |
Line - fuel vapor to purge valve |
| 15 |
Line - FFBH supply (if fitted) |
| 16 |
Line - fuel supply from fuel pump module |
