Component Location - GTDI 2.0 L Petrol - North AMERICA Specification (NAS)

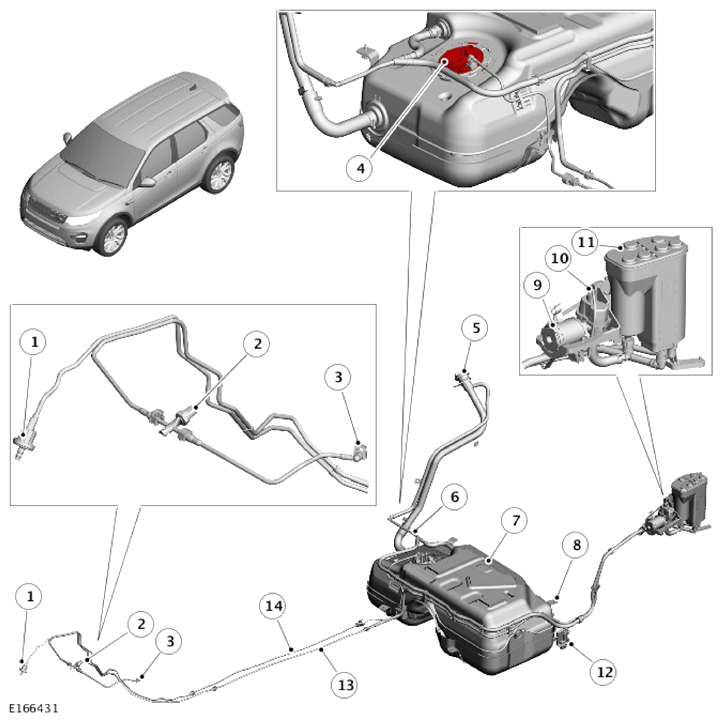

| ITEM | DESCRIPTION |
|---|---|
| 1 | Purge valve |
| 2 | Fuel Low Pressure (LP) sensor |
| 3 | Pipe - fuel supply to HP fuel pump |
| 4 | Fuel pump module |
| 5 | Fuel filler assembly |
| 6 | Pipe - fuel tank breather |
| 7 | Fuel tank assembly |
| 8 | Fuel tank support strap (2 off) |
| 9 | Diagnostic Monitoring Tank Leakage (DMTL) filter |
| 10 | DMTL pump |
| 11 | Evaporative emissions canister |
| 12 | Fuel Pump Driver Module (FPDM) |
| 13 | Line - fuel vapor to purge valve |
| 14 | Line - fuel supply from fuel pump module |
