High Pressure (Hp) Fuel System Components

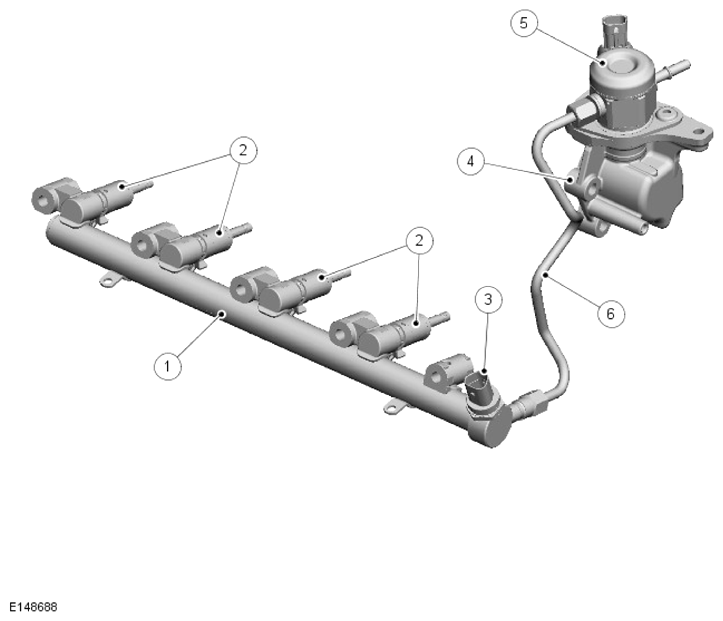

High Pressure Fuel System - Rest of the World (ROW)
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel rail |
| 2 | Fuel injector (4 off) |
| 3 | Fuel Rail Pressure (FRP) sensor |
| 4 | Fuel pump support housing |
| 5 | High Pressure (HP) fuel pump |
| 6 | High Pressure (HP) fuel line |

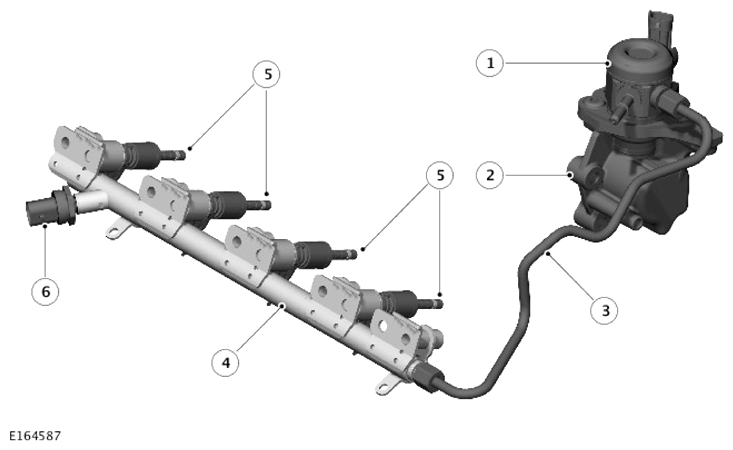

High Pressure Fuel System - North America Specification (NAS)
| ITEM | DESCRIPTION |
|---|---|
| 1 | High Pressure (HP) fuel pump |
| 2 | Fuel pump support housing |
| 3 | Pressure (HP) fuel line |
| 4 | Fuel rail High |
| 5 | Fuel injector (4 off) |
| 6 | Fuel Rail Pressure and Temperature (FRPT) sensor |
