Exhaust System - GTDI 2.0L Petrol/GTDI 2.0L Petrol - SULEV (G1807273): Removal
WARNING:
Observe due care when working near a hot exhaust system.
NOTE:
Removal steps in this procedure may contain installation details.
The following step(s) applies to:
All vehicles
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

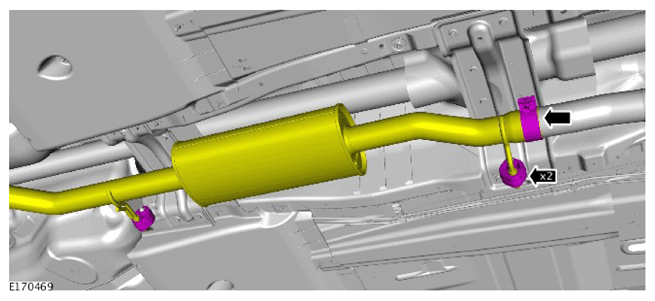

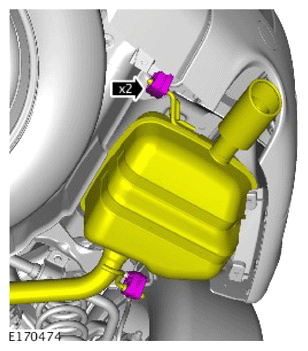

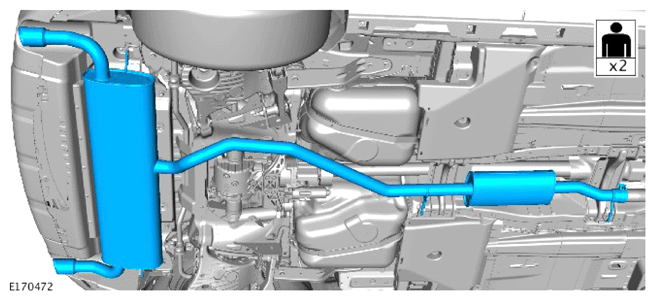

The following step(s) applies to:
Vehicles without occasional rear seats
Torque: 55 Nm
-
CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
-
CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.

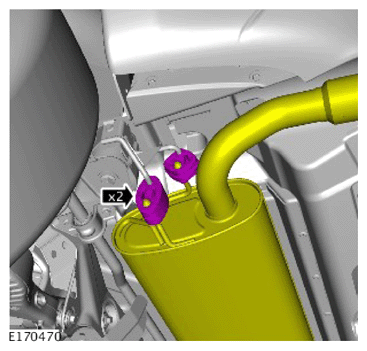

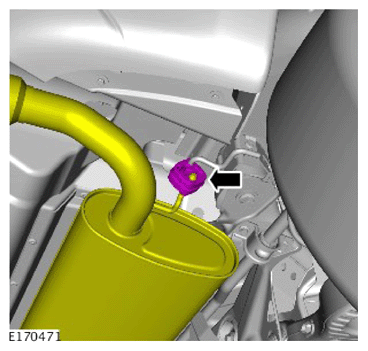

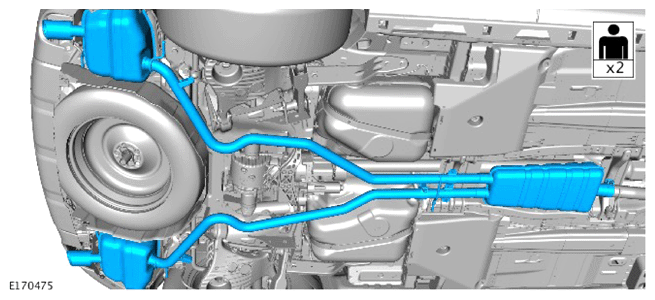

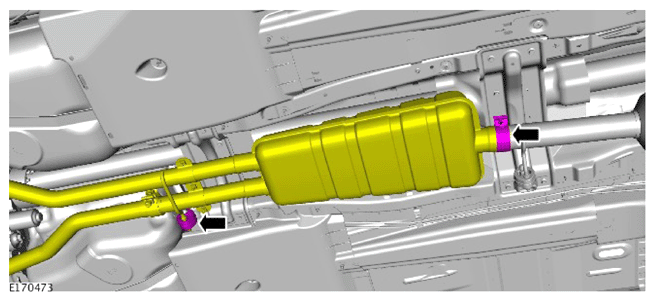

The following step(s) applies to:
Vehicles with occasional rear seats
Torque: 55 Nm
-
CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.NOTE: Repeat the step for the other side.
