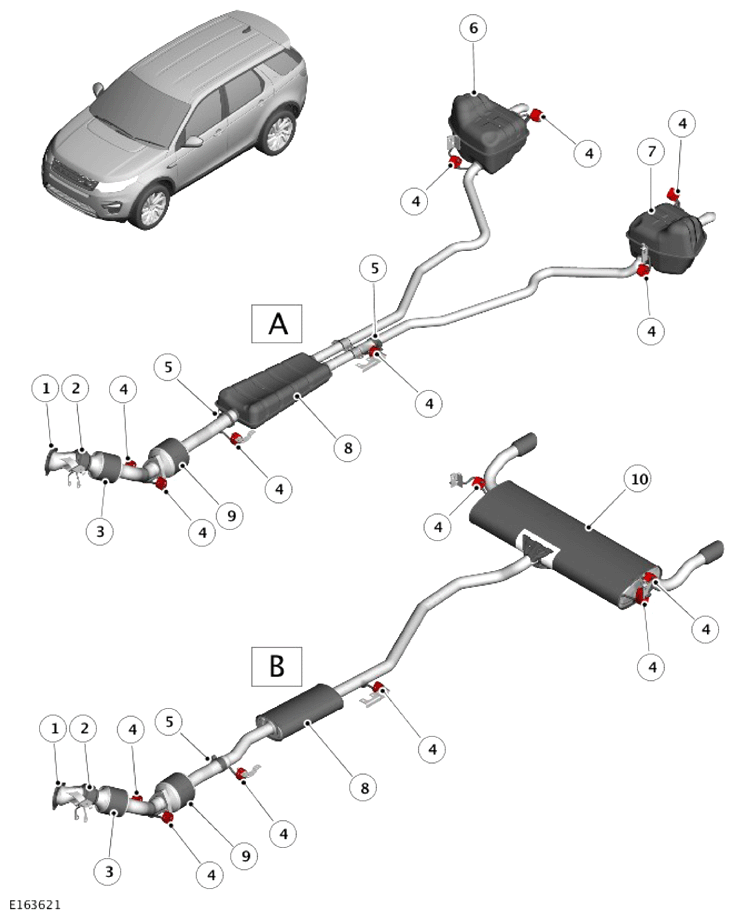

Component Location - GTDI 2.0L Petrol - Rest Of World (Row)
| ITEM | DESCRIPTION |
|---|---|
| A | Vehicles with spare wheel |
| B | Vehicles without spare wheel |
| 1 | Exhaust mounting flange to turbocharger |
| 2 | Flexible coupling |
| 3 | Pre-catalytic converter |
| 4 | Rubber mountings (7 off) |
| 5 | Clamp |
| 6 | Right rear silencer |
| 7 | Left rear silencer |
| 8 | Center silencer |
| 9 | Main catalytic converter |
| 10 | Rear silencer |
