Electric Cooling Fan

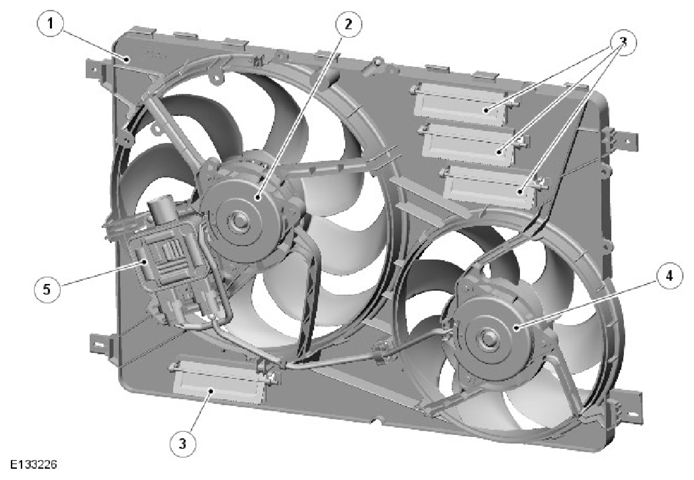

| ITEM | DESCRIPTION |
|---|---|
| 1 | Fan shroud |
| 2 | Left cooling fan and motor |
| 3 | Speed flaps |
| 4 | Right cooling fan and motor |
| 5 | Engine cooling fan control module |
Two cooling fans are used for both engine radiator and air conditioning (A/C) condenser cooling. The fans are mounted in the fan shroud and each retained with 3 screws.
The engine cooling fan control module is also mounted on the shroud, behind the left fan motor. The shroud incorporates 4 speed flaps, which pivot open to allow engine compartment cooling at speed.
The shroud, fans and module are supplied as one assembly and individual parts are not serviceable.
