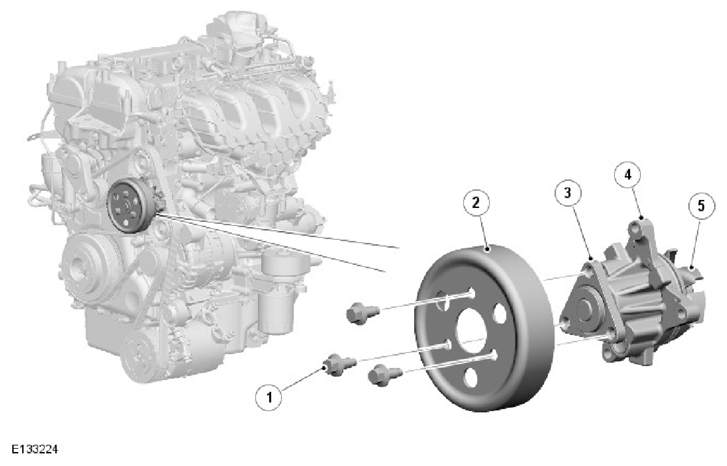

Coolant Pump
| ITEM | DESCRIPTION |
|---|---|
| 1 | Bolt (3 off) |
| 2 | Accessory drive belt pulley |
| 3 | Pulley flange |
| 4 | Coolant pump body |
| 5 | Impeller |
The coolant pump is located at the front of the cylinder block. The pump is located in a recess in the block and secured with 3 bolts and sealed with an O-ring seal.
A pulley is attached to the pump flange with 3 bolts. The pulley is driven off the FEAD (front end accessory drive) belt at engine speed.
