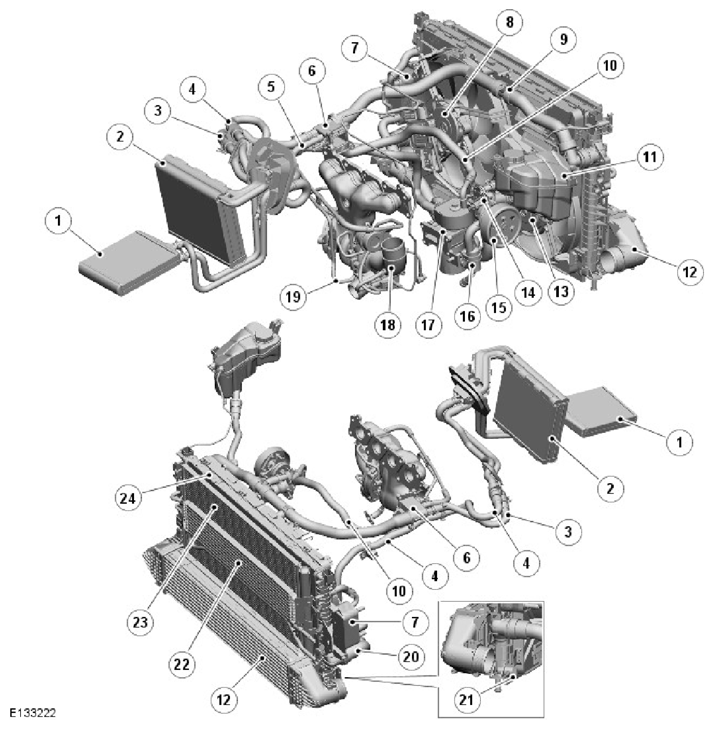

| 1 |
Heater core |
| 2 |
Air Conditioning (A/C) evaporator (ref only) |
| 3 |
Heater inlet hose |
| 4 |
Heater outlet hose/Oil cooler inlet hose |
| 5 |
Turbocharger coolant outlet pipe |
| 6 |
Coolant outlet |
| 7 |
Transmission fluid cooler |
| 8 |
Electric cooling fan - Left side |
| 9 |
Radiator top hose |
| 10 |
By-pass hose |
| 11 |
Coolant expansion tank |
| 12 |
Charge air cooler (reference only) |
| 13 |
Electric cooling fan - Right side |
| 14 |
Thermostat and housing |
| 15 |
Coolant pump |
| 16 |
Block heater (if equipped) |
| 17 |
Engine oil cooler |
| 18 |
Turbocharger |
| 19 |
Turbocharger coolant inlet pipe |
| 20 |
Radiator bottom hose |
| 21 |
Engine coolant drain plug |
| 22 |
Transmission oil cooler (hot climate markets only) |
| 23 |
A/C condenser (reference only) |
| 24 |
Engine cooling radiator |
