Camshaft Cover Breather

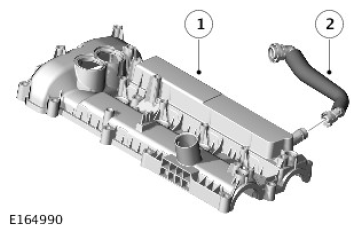

G13631975
ITEM DESCRIPTION
1 Camshaft cover
2 Camshaft cover vent hose

The camshaft cover breather comprises a hose connecting the camshaft cover to the clean air low pressure intake duct from the air cleaner and a baffle valve located within the cover. This breather is known as the full load breather.
