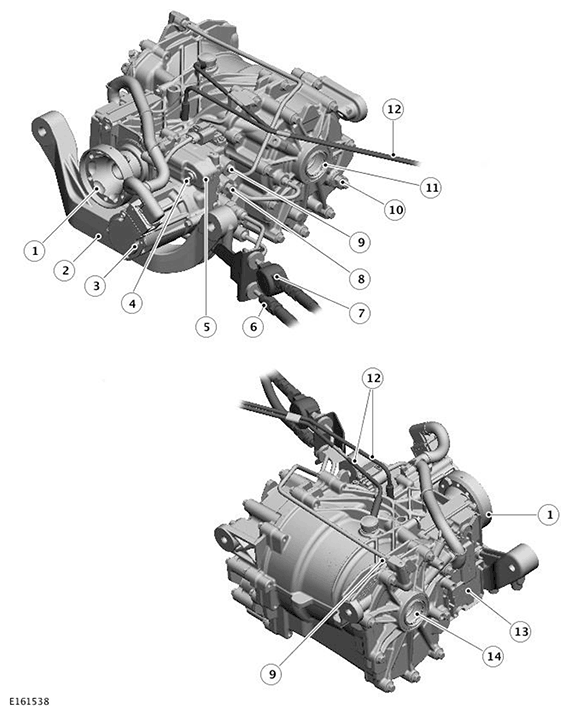

Rear Drive Unit (RDU)
| ITEM | DESCRIPTION |
|---|---|
| 1 | Drive flange |
| 2 | Mounting bracket |
| 3 | RDU pump |
| 4 | All Wheel Drive (AWD) valve block oil filler plug |
| 5 | AWD Valve block |
| 6 | PTU synchronizer piston pressure line P4 |
| 7 | PTU synchronizer piston pressure line P3 including pressure damper |
| 8 | Left RDU clutch pressure line P2 |
| 9 | Right RDU clutch pressure line P1 |
| 10 | RDU oil level plug |
| 11 | Left inner disc carrier |
| 12 | Breathers |
| 13 | AWD Control Module (AWDCM) |
| 14 | Right inner disc carrier |
