Power Transfer Unit (PTU)

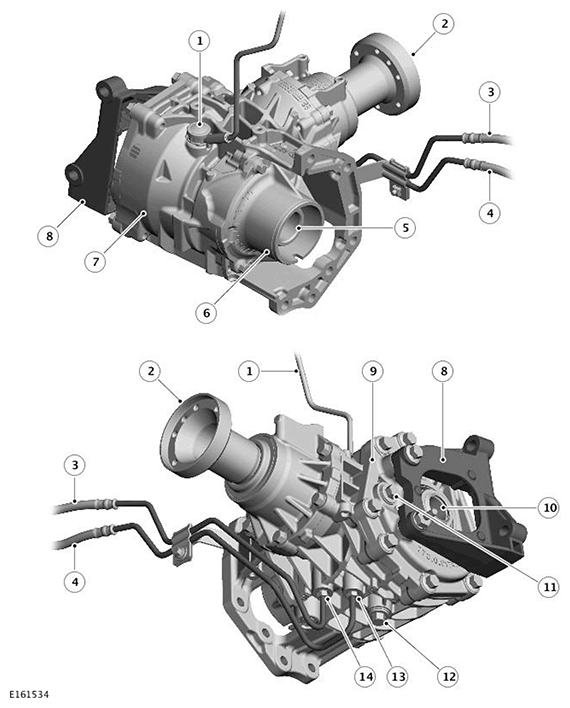

G11719542
ITEM DESCRIPTION
1 Breather and tube
2 Drive flange
3 Hydraulic pressure line from AWD valve block (P4)
4 Hydraulic pressure line from AWD valve block (P3)
5 Input shaft
6 Left cover
7 Casing
8 Engine mounting bracket
9 Right cover
10 Crown wheel shaft
11 Level plug
12 Drain plug
13 Hydraulic connection (P3)
14 Hydraulic connection (P4)
