All Wheel Drive (AWD) Valve Block

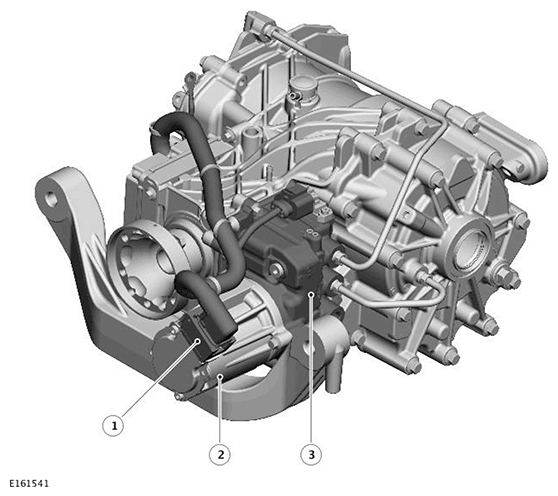

AWD VALVE BLOCK

G11719549
ITEM DESCRIPTION
1 ELECTRICAL CONNECTOR
2 RDU PUMP AND ACTUATOR
3 AWD VALVE BLOCK
