4X4I Display In Touch Screen

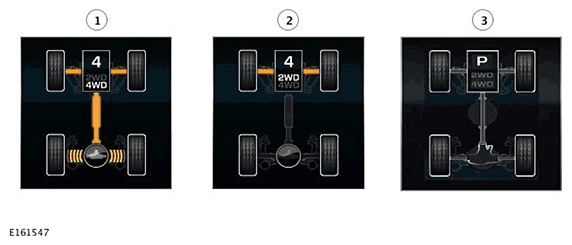

G11719555
ITEM DESCRIPTION
1 Active Driveline Disconnect AWD - displayed when Active Driveline is in an AWD status for optimum traction and dynamic performance
2 Active Driveline Disconnect FWD - displayed when Active Driveline is in FWD status for optimum fuel economy
3 Active Driveline OFF - displayed when the engine is off, or when a fault condition prevents the Active Driveline status from being displayed

Warning information is displayed in the IC. Warning message '2 wheel drive only - traction reduced' will be displayed for overheat in the message center and accompanied by a warning chime. If a system fault occurs, the message ' 4 wheel drive fault - 2 wheel drive only' will be displayed, accompanied by a warning chime.
