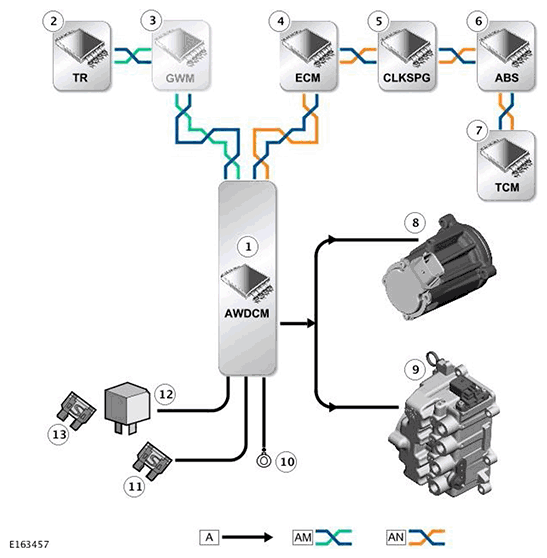

Control Diagram
NOTE:
A
= Hardwired; AM
= High Speed CAN Chassis Systems Bus; AN
= High Speed CAN Powertrain Systems Bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | All Wheel Drive Control Module (AWDCM) |
| 2 | Terrain Response (TR) switchpack |
| 3 | Gateway Module (GWM) |
| 4 | Engine Control Module (ECM) |
| 5 | Steering Angle Sensor Module (SASM) |
| 6 | Anti-lock Brake System (ABS) control module |
| 7 | Transmission Control Module (TCM) |
| 8 | Rear Drive Unit (RDU) pump actuator |
| 9 | All Wheel Drive (AWD) valve block |
| 10 | Ground |
| 11 | Fused permanent 12V power supply from Central Junction Box (CJB) |
| 12 | Ignition relay |
| 13 | 12V power supply from Battery Junction Box (BJB) |
