Component Location - Vehicles With Active Driveline

NOTE: Automatic transmission shown, manual transmission similar

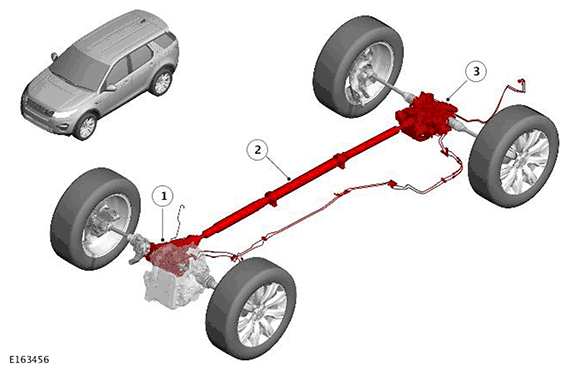

G11719541
ITEM DESCRIPTION
1 Power Transfer Unit (PTU)
2 Driveshaft
3 Rear Drive Unit (RDU)
4 Hydraulic lines
