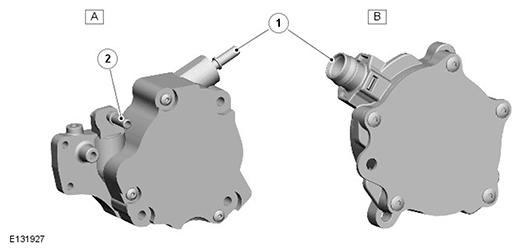

Brake Vacuum Pump TD4 2.2L Engine And GTDI 2.0L Engine
| ITEM | DESCRIPTION |
|---|---|
| A | Brake vacuum pump - TD4 2.2L engines |
| B | Brake vacuum pump - GTDi 2.0L engines |
| 1 | Brake vacuum pipe connector |
| 2 | Exhaust Gas Recirculation (EGR) vacuum pipe connector |
For both the TD4 2.2L diesel and the GTDi 2.0L petrol engines, the brake vacuum pump is attached to the rear of the engine and driven by the intake camshaft.
On the TD4 2.2L diesel engine, the brake vacuum pump has an additional vacuum connector, which is connected to the Exhaust Gas Recirculation (EGR) system.
For additional information, refer to: ENGINE EMISSION CONTROL
