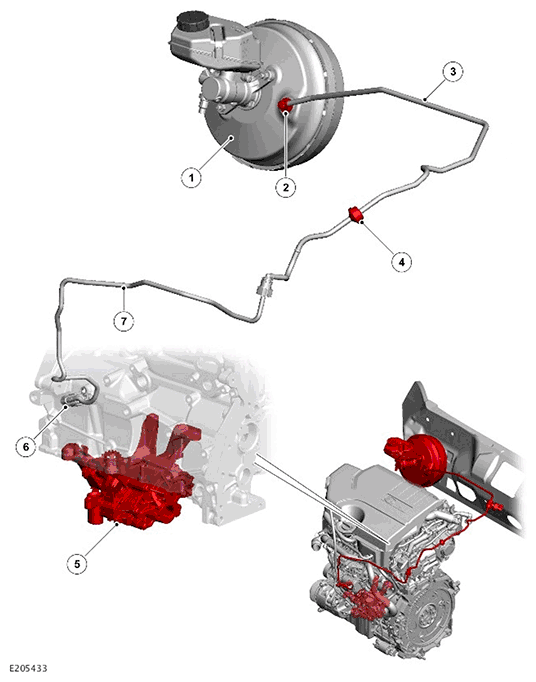

Component Location - 6 Of 6 - INGENIUM I4 2.0L Petrol Engine Without Stop/Start
NOTE:
Right Hand Drive (RHD) illustrations shown, Left Hand Drive (LHD) illustrations similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Brake booster |
| 2 | Brake booster connector |
| 3 | Brake vacuum pipe |
| 4 | Check valve |
| 5 | Variable flow oil pump with integral vacuum pump |
| 6 | Brake vacuum pipe connector - Engine |
| 7 | Brake vacuum pipe - Engine |
