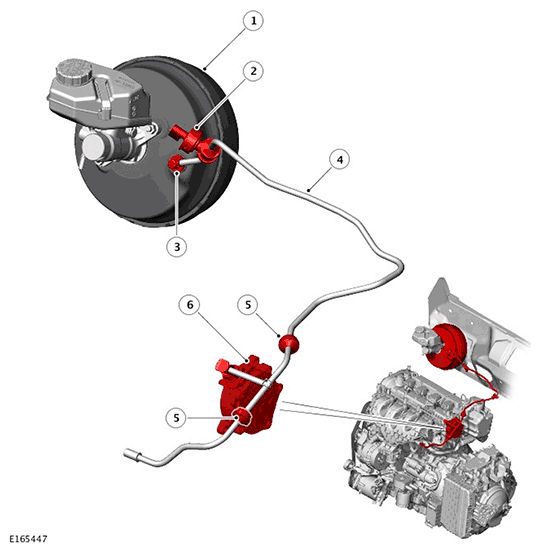

Component Location - 3 Of 6 - GTDI 2.0L Engine With Stop/Start
NOTE:
Right Hand Drive (RHD) illustrations shown, Left Hand Drive (LHD) illustrations similar.
| ITEM |
DESCRIPTION |
| 1 |
Brake booster |
| 2 |
Brake vacuum sensor |
| 3 |
Brake booster connector |
| 4 |
Brake vacuum pipe |
| 5 |
Check valve (2 off) |
| 6 |
Brake vacuum pump |
