Seat Smoothing: Check

WARNING:
  • Make sure that the steamer is in the OFF position before connecting or disconnecting from the electrical outlet.
  • Do not use another high wattage device on the same electrical circuit.
  • If the use of an extension cord is absolutely necessary, the cord must be rated at a minimum of 10 amps.
  • To avoid the risk of electrical shock, check the condition of the power cord and the steamer before use.
  • Make sure that the steamer is disconnected from the electrical outlet before filling or emptying the water reservoir.
  • The steamer must only be used and placed on its stand on a stable surface.
  • To prevent injury such as burns, take care while using the steamer. Avoid coming into
  • Contact with the hot surface of the steamer and do not direct steam toward any persons. The steamer must ALWAYS be switched off when not in use or left unattended.
  • Do not allow the power cord to come into contact with the hot surface of the steamer.
CAUTION:
  • Protect the surrounding paintwork to avoid damage.
  • Protect the paintwork during this operation.
  • Do not use any additives in the steamer. Damage to the steamer or the seat cover can result if used.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. NOTE: The seat smoothing process should be used to improve all natural leather characteristics before the seat cover is replaced. Use the below examples and the seat cover inspection procedure as a guide for when to use the seat smoothing process.

    Refer to: SEAT SMOOTHING .

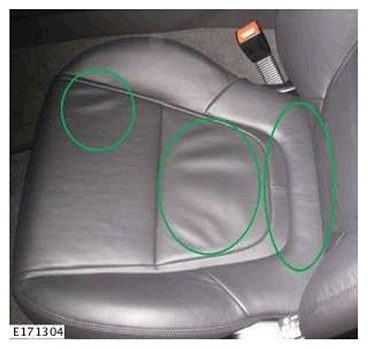

  2. NOTE: The example in the illustration shows the natural characteristics of leather that can be improved using the seat smoothing process.
    G11593688

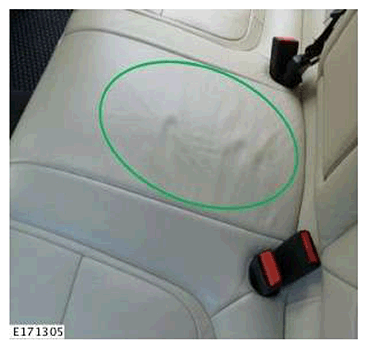

  3. NOTE: The example in the illustration shows the natural characteristics of leather that can be improved using the seat smoothing process.
    G11593689

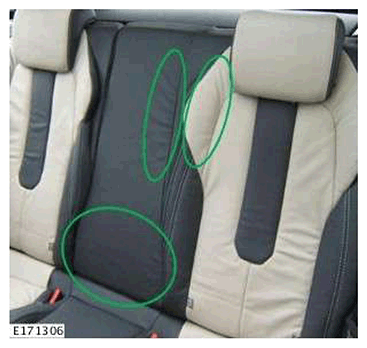

  4. NOTE: The example in the illustration shows the natural characteristics of leather that can be improved using the seat smoothing process.
    G11593690

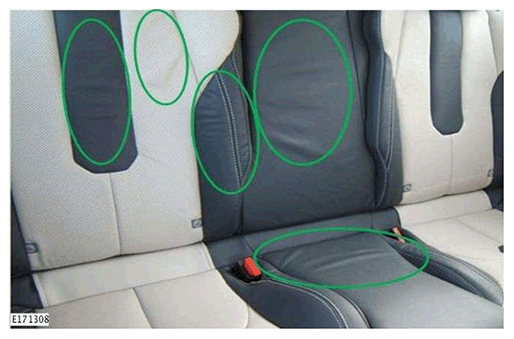

  5. NOTE: The example in the illustration shows the natural characteristics of leather that can be improved using the seat smoothing process.
    G11593691

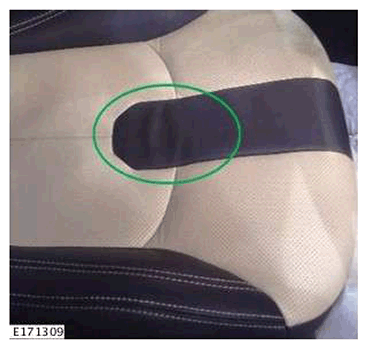

  6. NOTE: The example in the illustration shows the natural characteristics of leather that can be improved using the seat smoothing process.
    G11593692

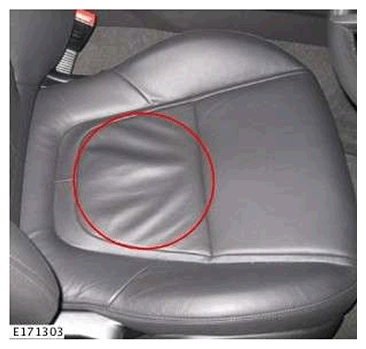

  7. NOTE: The example in the illustration shows the natural characteristics of leather that can not be improved using the seat smoothing process.
    G11593693

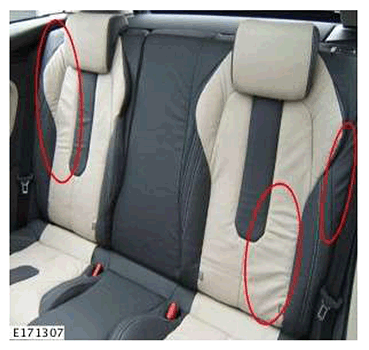

  8. NOTE: The example in the illustration shows the natural characteristics of leather that can not be improved using the seat smoothing process.
    G11593694
  9. CAUTION:
    • Steam the leather cushions evenly and progressively. Do not use excessive force.
