Leather Seat Covers Manufacturing Defect Guidelines

Examples of Damage to Seat Cover

Below are some examples of damage that would not be accepted under the terms of the Jaguar Land Rover warranty agreement. Please note: these are examples only and do not represent all warrantable/non warrantable customer concerns.

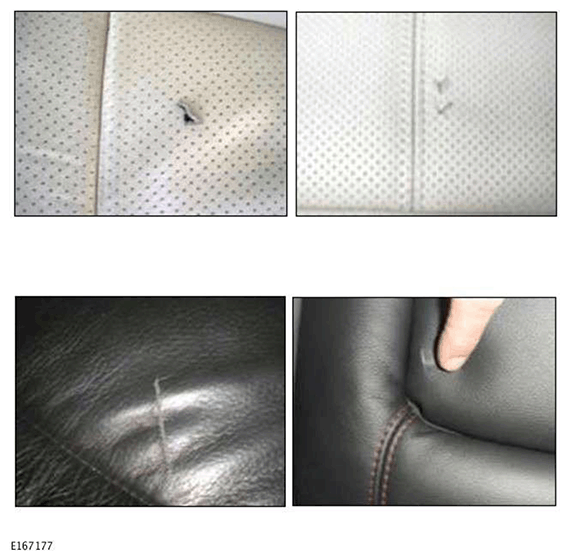

The examples below show damage such as cuts, tears and puncture holes. These types of damage would not be accepted under the terms of the Jaguar Land Rover warranty agreement (unless the seat cover damage was noted on the Pre Delivery Inspection).

G11593676

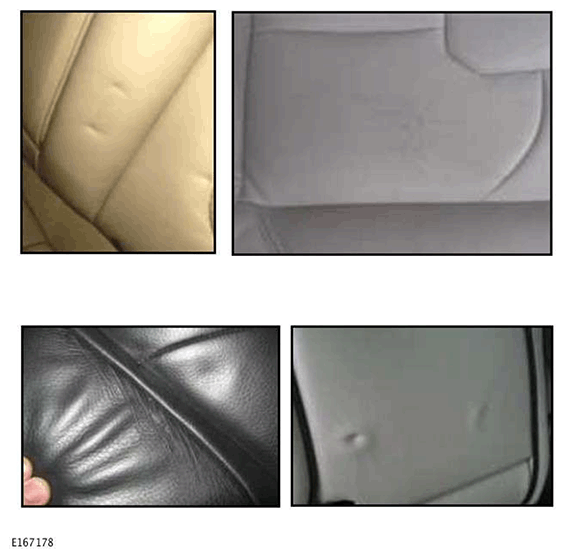

The examples below show damage such as scratches, scrapes, snags and indentation marks. These types of damage would not be accepted under the terms of the Jaguar Land Rover warranty agreement (unless the seat cover damage was noted on the Pre Delivery Inspection).

G11593677

The examples below show damage such as pen marks and visual surface burns. These types of damage would not be accepted under the terms of the Jaguar Land Rover warranty agreement (unless the seat cover damage was noted on the Pre Delivery Inspection).

G11593678

Examples of Natural Characteristics of Leather

Below are some examples of the natural characteristics of leather which will mature with use and ageing. These examples of the natural characteristics of leather are not manufacturing defects. Improvements in the seat cover can be achieved by following the smoothing process.

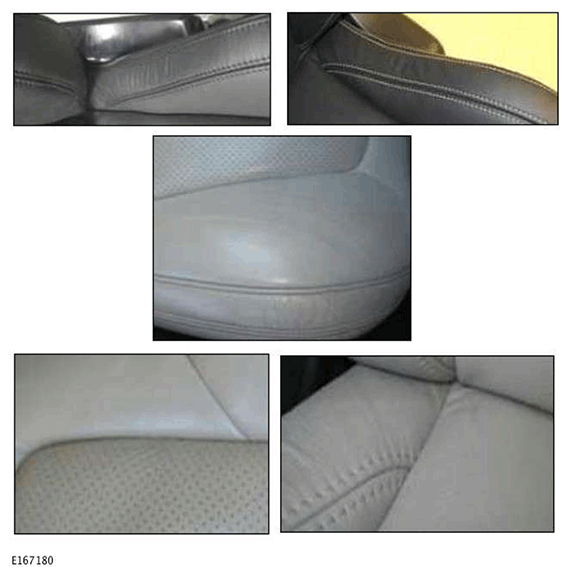

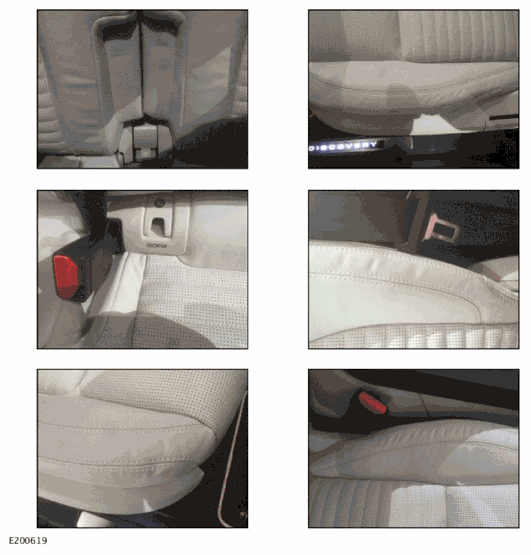

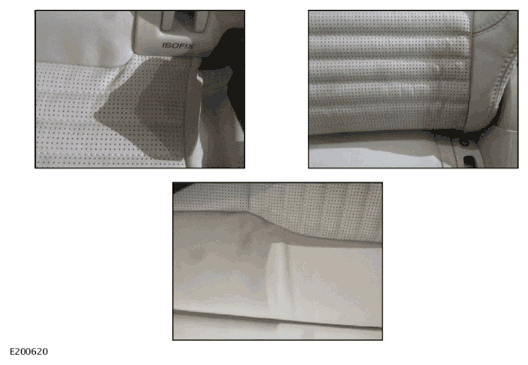

The examples below show the natural characteristics of leather. These types of natural characteristics of leather would not be accepted under the terms of the Jaguar Land Rover warranty agreement.

G11593679
G11725479
G11725480

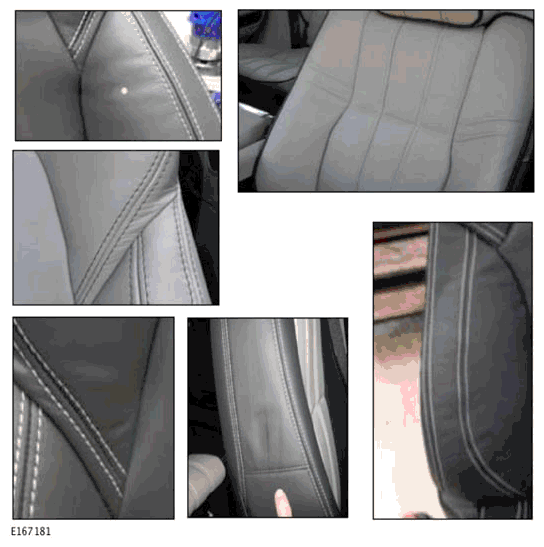

The examples below show the natural characteristics of leather on the front seat back and squab bolsters. These types of natural characteristics of leather would not be accepted under the terms of the Jaguar Land Rover warranty agreement.

G11597506

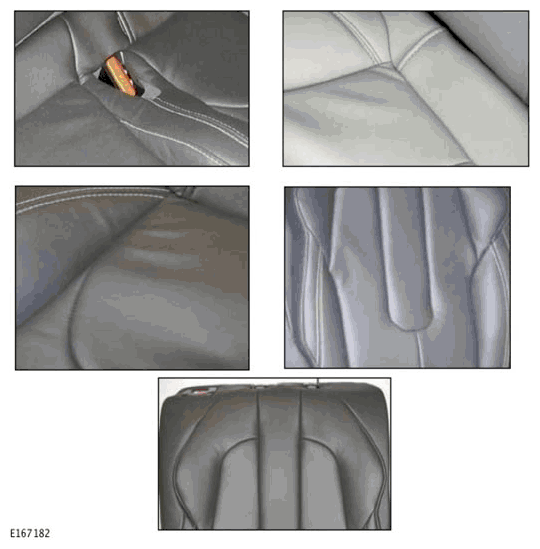

The examples below show the natural characteristics of leather on the rear seat. These types of natural characteristics of leather would not be accepted under the terms of the Jaguar Land Rover warranty agreement.

G11597507

Examples of Soiling, Stains and Incorrect Cleaning

Below are some examples of soiling, stains and incorrect cleaning that would not be accepted under the terms of the Jaguar Land Rover warranty agreement. Please note: these are examples only and do not represent all warrantable/non warrantable customer concerns.

The example below shows soiling on the seat cover. This type of soiling would not be accepted under the terms of the Jaguar Land Rover warranty agreement.

G11597508

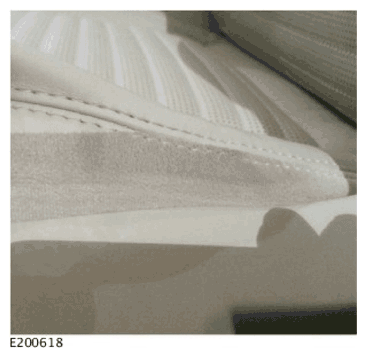

The examples below show staining on the seat cover. These type of staining would not be accepted under the terms of the Jaguar Land Rover warranty agreement.

G11597509
G11725485

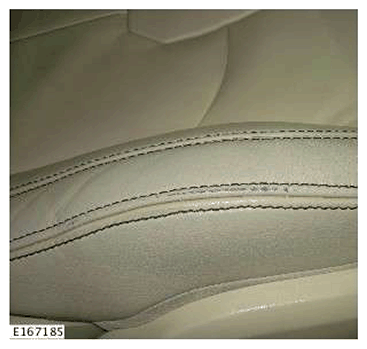

The example below shows incorrect cleaning on the seat cover. This type of incorrect cleaning would not be accepted under the terms of the Jaguar Land Rover warranty agreement.

G11593684

Examples of Excessive Wear

Below are some examples of excessive wear on the seat covers that is often caused by studs, zips and buckles. This would not be accepted under the terms of the Jaguar Land Rover warranty agreement. Please note: these are examples only and do not represent all warrantable/non warrantable customer concerns.

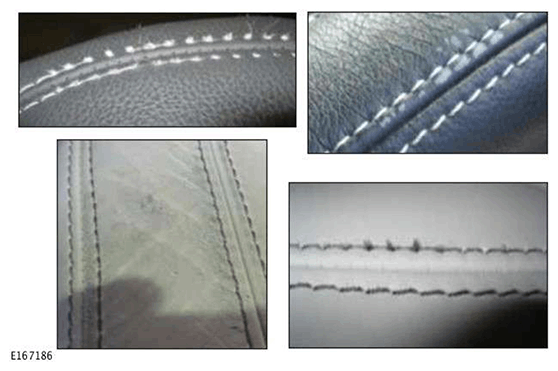

The examples below show excessive wear on the seat covers, when studs, zips and buckles are in contact with the seat cover while entering and exiting the vehicle. These types of wear would not be accepted under the terms of the Jaguar Land Rover warranty agreement.

G11593685

Seat Cover Replacement

Below are some examples of issues on the seat covers after they have been replaced. This would not be accepted under the terms of the Jaguar Land Rover warranty agreement. Please note: these are examples only and do not represent all warrantable/non warrantable customer concerns.

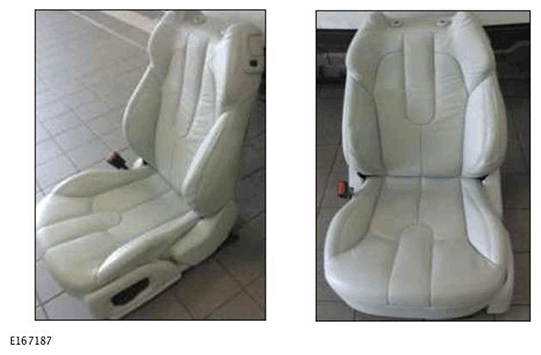

The example below shows excessive wrinkling or looseness due to incorrect fitment of the front seat covers. These types of incorrect fitment would not be accepted under the terms of the Jaguar Land Rover warranty agreement.

G11593686

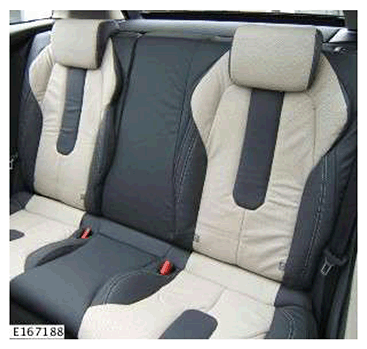

The example below shows excessive wrinkling or looseness due to incorrect fitment of the rear seat covers. This type of incorrect fitment would not be accepted under the terms of the Jaguar Land Rover warranty agreement.

G11593687
