Removal And Installation: Installation

CAUTION: Apply a small amount of grease to the hub spigot and associated wheel spigot bore before installation. Make sure the grease does not come into contact with the vehicles braking components, or wheel studs threads. Failure to follow these may result in personal injury.
WARNING: The wheel and tire assembly will be heavy.

CAUTION: Using power tools may result in damage to the wheel nuts. Make sure the wheel nuts are installed using hand tools only.
NOTE:
- Make sure that the component is installed to the position noted on removal.
- Left-hand shown, right-hand similar.

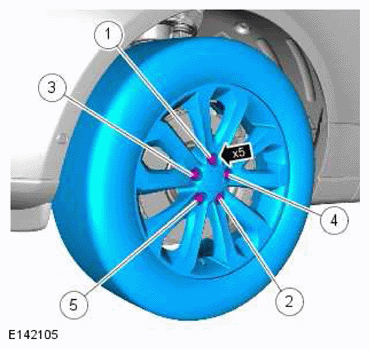

Fig 1: Wheel And Tire Nuts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Stage 1 : 4 Nm

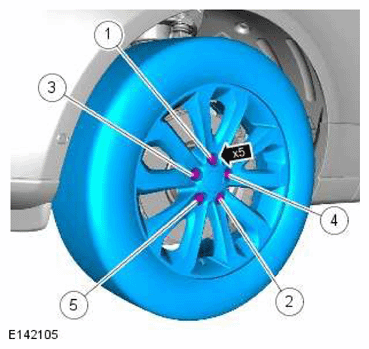

Fig 2: Wheel And Tire Nuts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Stage 2 : 70 Nm

Fig 3: Wheel And Tire Nuts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Stage 3 : 140 Nm
