Removal And Installation: Installation
NOTE:
Record the identification code found on the casing of the sensor.
-

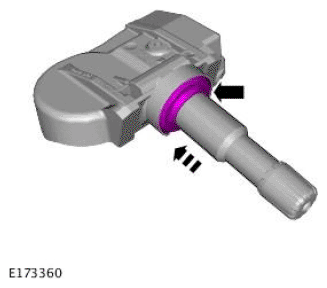

CAUTION: Make sure that the seal is correctly located.
Install a new washer and seal, making sure the valve remains pressed fully onto its seat.
- CAUTION:
- Using a lint free cloth make sure that any corrosion or dirt is removed from the mating surfaces.
- Only use moderate force when installing the sensor.

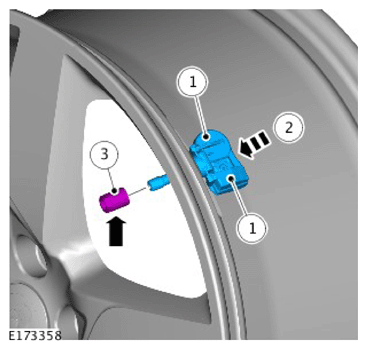

Install a new tire valve, seal, washer, cap and retaining nut.
Renew Part: Tire pressure monitoring system sensor kit Quantity: 1 .
Torque Specification: 8 Nm
- Install the tire and balance the wheel.
- Install the wheel.
- If a new component has been installed, configure using Land Rover approved diagnostic equipment.
General Equipment: Land Rover diagnostic equipment
