Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: OVERHEAD CONSOLE
  2. NOTE: Repeat the procedure for the other side.

    Refer to: A-PILLAR TRIM PANEL

  3. NOTE: Repeat the procedure for the other side.

    Refer to: SUN VISOR

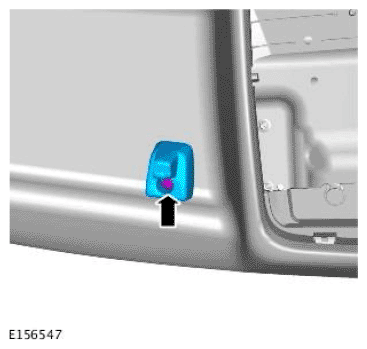

  4. NOTE: Repeat the step for the other side.
    G11692797

    Torque Specification: 6 Nm

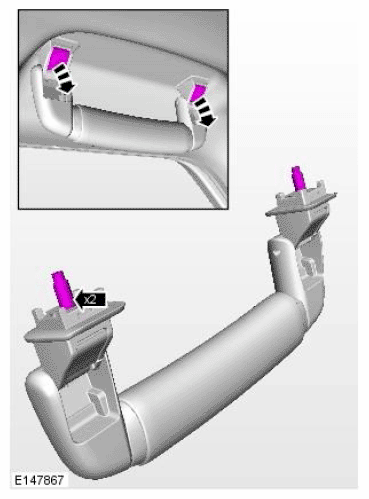

  5. NOTE: Repeat the step for the other side.
    G11692798

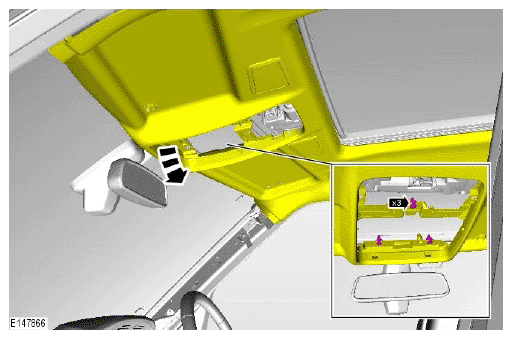

  6. CAUTION:
    • Lower the front section of the headliner to aid access.
    • Make sure damage is not caused to the headliner.
    G11692799

    Release the headlining.

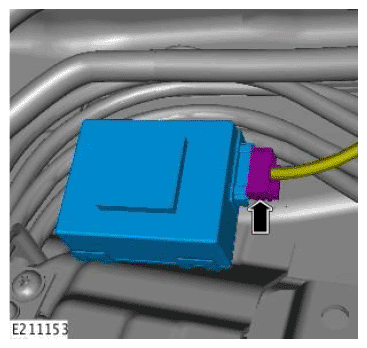

  7. CAUTION: Detach the receiver from the headliner by releasing the velcro.
    NOTE:
    • Ensure all Data is inhaled from the existing component using a Jaguar Land Rover Approved Diagnostics Tool.
    • Make sure that this component is installed to the noted removal position.
    G11692800
