TPMS Warning Messages

1.3.1  Non EU or non NAS market TPMS warning messages.

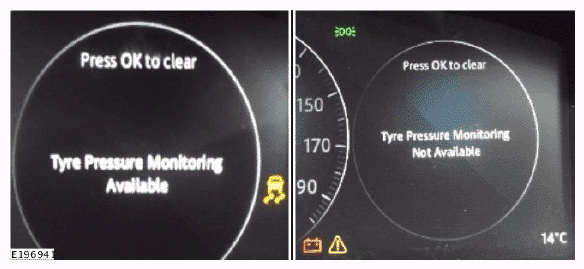

In non EU or non NAS markets, when rubber valves are fitted, the TPMS instrument cluster will display the message "Tire monitoring not available"  , after 10 minutes of driving. The instrument cluster message "Tire monitoring not available"  , will come on every subsequent ignition cycle, until the TPMS sensors are re-fitted.

G11692791

The instrument cluster message "Tire Pressure Monitoring Available"  , will be displayed on the instrument cluster when all four TPMS wheel sensors have been detected, and will display for 20 seconds.

1.3.1  All market warning messages.

The instrument cluster message "Tire Pressures too low for high speed"  , and the TPMS ISO symbol will be displayed when the tire pressures are 80% below the required pressure for high speed driving.

The instrument cluster and the tire pressure label at the bottom of the B-pillar on the driver's side of the vehicle will show the required pressures for high speed driving.

1.4  NAS market warning messages.

The load setting of the vehicle may be changed in the load setting menu, (vehicle dependant).

G11585500

1.4.1  The instrument cluster message "Tire Pressure set for Light Load"  , is a reminder that the load switching has been set to the light setting, and are the lower of the tire pressures recommended.

1.4.2  The instrument cluster message "Tire Pressure set for Normal Load"  , is a reminder that the load switching has been set the normal setting, and is the highest tire pressures recommended.

1.5  EU and ROW warning messages.

The load setting of the vehicle may be changed in the load setting menu, (vehicle dependant).

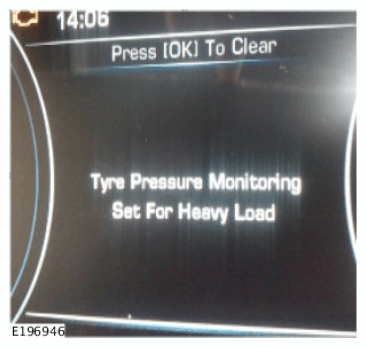

G11585501

1.5.1  The instrument cluster message "Tire Pressure set for Light Load"  , is a reminder that the load switching has been set to the light setting, and are the lower of the tire pressures recommended.

1.5.2  The instrument cluster message "Tire Pressure set for Heavy Load"  , is a reminder that the load switching has been set to the Heavy setting, and is the highest tire pressures recommended.
