TG1C And TG1C Valve Stem

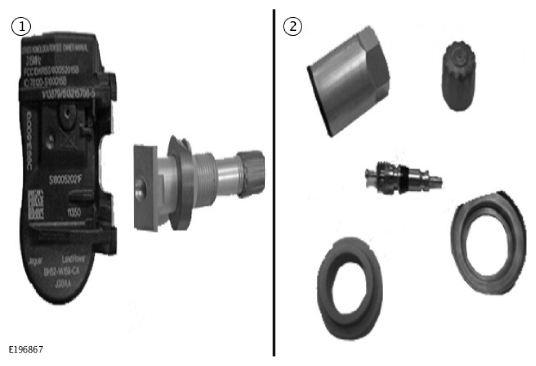

If the TPMS wheel unit is a TG1C, 2 part TPMS wheel unit, where the valve stem can be separated, then order just the LR043162 valve stem kit containing 5 replacement valve stems, nuts, washers. Use this sub assembly kit whenever a leak occurs between valve stem and the wheel.

NOTE: Please note that Jaguar Land Rover does not cover the snapped/damaged TPMS under warranty, this is not a manufacturing defect.

UK markets:  Valve stem kit with a shorter valve stem is LR077043.

G11585497
