Removal And Installation: Removal

  1. Raise and support the vehicle.
  2. Remove the wheel and tire.
  3. Remove the upper arm.

    For additional information, refer to: UPPER ARM .

  4. NOTE: Secure the upper arm in a suitable vice.

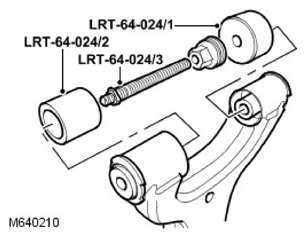

    G11745246

    Using the special tools, remove the upper arm bushes.
