Removal And Installation: Removal

NOTE: Right hand shown, Left hand similar.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS .

  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

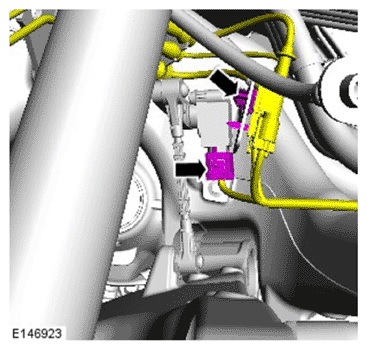

  3. G11692893

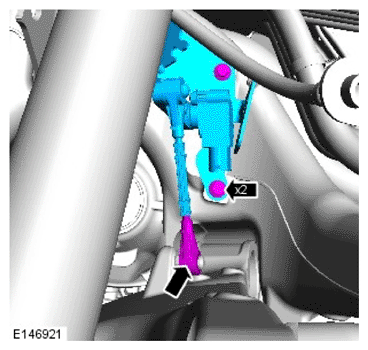

  4. CAUTION: Do not use excessive force to disconnect the height sensor link.
    G11692894

    Torque Specification: 10 Nm

  5. Inspect the condition of the suspension height sensor wiring harness. Rectify any concerns, if required.

    Refer to: WIRING HARNESS .
