Removal And Installation: Installation

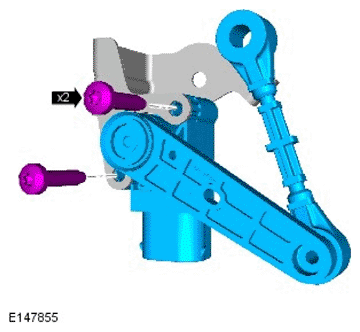

  1. G11692879

    Torque Specification: 4 Nm

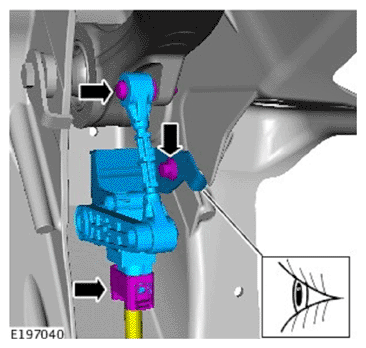

  2. G11692878

    Torque Specification: 7 Nm

  3. Connect the battery ground cable.

    Refer to: SPECIFICATIONS .

  4. CAUTION: Calibration of the air suspension system must be carried out if the suspension height sensor is loosened, removed or replaced.

    Using the Land Rover approved diagnostic system, calibrate the suspension ride height.

    Refer to: VEHICLE DYNAMIC SUSPENSION .
