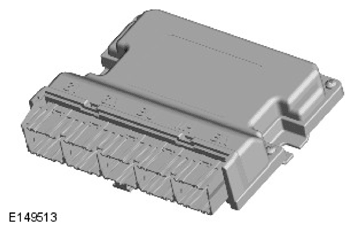

Chassis Control Module

G11692815

The air suspension system is controlled by the Chassis Control Module (CHCM). The control module monitors the height of each corner of the vehicle via four height sensors, which are mounted in-board of each road wheel.

When a new CHCM is fitted, the air suspension system will not function until the air suspension software is loaded and the system calibrated using a Land Rover approved diagnostic system.
