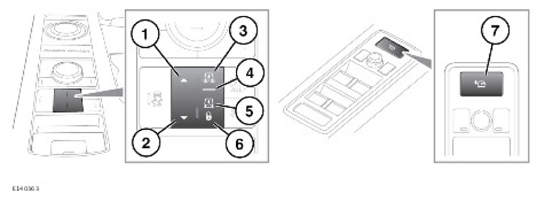

Air Suspension Switch Pack
| ITEM | DESCRIPTION |
|---|---|
| 1 | Raise suspension height |
| 2 | Lower suspension height |
| 3 | Off-road height indicator |
| 4 | Normal height indicator |
| 5 | Access height indicator |
| 6 | Suspension locked in Access height - indicator |
| 7 | Access height switch (driver door switch pack) |
The air suspension control switch is located in the floor console, behind the transmission selector. The switch is a three position, non-latching switch which allows selection of the following driver selectable states:
- Off-road mode
- Normal height
- Access height
- Locked at access height
The switch has six symbols which illuminate to show the current selected height state and the direction of movement. The raise and lower symbols will flash and a warning tone will be emitted from the instrument cluster sounder when a requested height change is not allowed, for example, when the vehicle speed is too fast.
A flashing height symbol indicates that the air suspension system is in a waiting state or that the system will override the driver's selection because the speed threshold is too high.
The driver can also ignore the system's warnings signals and allow the height to change automatically. For example, increasing the vehicle speed to more than 40 km/h (25 mph) when locked to access height will cause the control module to automatically change the ride height to on-road mode.
