Air Supply Unit

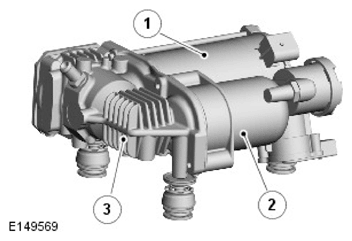

| ITEM | DESCRIPTION |
|---|---|
| 1 | Electric motor |
| 2 | Air dryer |
| 3 | Compressor |
The air supply unit comprises the following major components:
- A two-stage piston compressor
- A 12V electric motor
- A solenoid operated exhaust pilot valve
- A pneumatically operated exhaust slave valve
- An air dryer unit.
The air supply unit is protected by an acoustic box which tilts to allow access to the vehicle battery.
