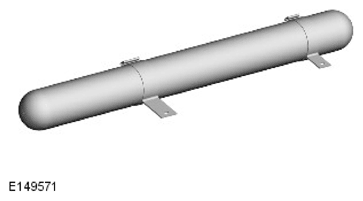

Air Reservoir

The reservoir is an air storage vessel which provides fast air suspension lift times by the immediate availability of pressurized air into the system.

The CHCM assumes the reservoir has sufficient pressure, which is measured before a vehicle raise is started. The control module then uses a software model to operate the compressor as required.

The rearward end of the reservoir has a 'Voss' air fitting which provides for the connection of the air hose between the reservoir and the rear valve block.

The reservoir has a capacity of 11 liters. The nominal working pressure of the reservoir is 16.5 bar gage.
