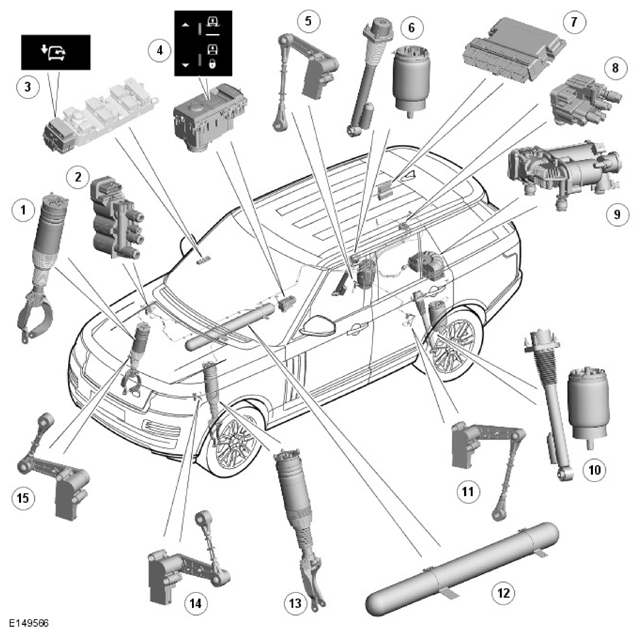

Air Suspension - Component Location
| ITEM | DESCRIPTION |
|---|---|
| 1 | Air spring and damper - right front |
| 2 | Valve block - front |
| 3 | Access mode switch (driver door switch pack) |
| 4 | Air suspension control switch |
| 5 | Height sensor - right rear |
| 6 | Air spring and damper - right rear |
| 7 | Chassis Control Module (CHCM) |
| 8 | Valve block - rear |
| 9 | Air supply unit |
| 10 | Air spring and damper - left rear |
| 11 | Height sensor - left rear |
| 12 | Air reservoir |
| 13 | Air spring and damper - left front |
| 14 | Height sensor - left front |
| 15 | Height sensor - right front |
