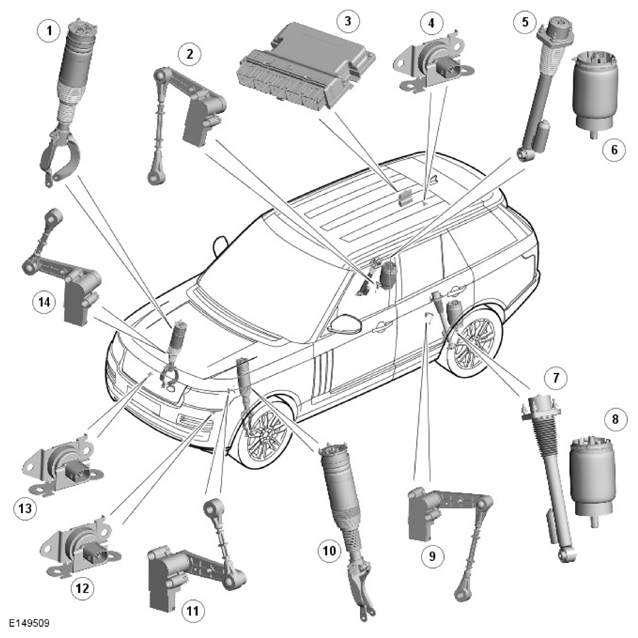

Adaptive Damping - Component Location
| ITEM | DESCRIPTION |
|---|---|
| 1 | Air spring and damper - front right |
| 2 | Height sensor - rear right |
| 3 | Chassis Control Module (CHCM) |
| 4 | Accelerometer - rear |
| 5 | Damper - rear right |
| 6 | Air spring - rear right (shown for location only) |
| 7 | Damper - rear left |
| 8 | Air spring - rear left (shown for location only) |
| 9 | Height sensor - rear left |
| 10 | Air spring and damper - front left |
| 11 | Height sensor - front left |
| 12 | Accelerometer - front left |
| 13 | Accelerometer - front right |
| 14 | Height sensor - front right |
