Removal And Installation: Removal
WARNING:
A small amount of air maybe released when removing the air line connector.
CAUTION:
- Make sure that the component is clean and free from foreign material.
- Make sure that all openings are sealed.
-
CAUTION: This step must be carried out in order to maintain the correct air suspension compressor/dryer performance.
Using SDD depressurize the rear air springs and the air reservoir.
Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE .
- Disconnect the battery ground cable
Refer to: SPECIFICATIONS .

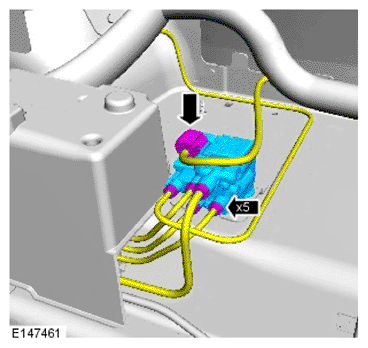

- NOTE:
- Note the orientation of the color coded air lines prior to removal
- Discard the air line connectors.
Refer to: AIR LINE CONNECTOR .
Renew Part: Air line connector(s) Quantity: 1 .
