Removal And Installation: Removal

CAUTION:
  • Extreme cleanliness must be exercised when handling this component.
  • It is imperative that no damage is caused to the electrical connectors or the module.
  • Do not touch the electrical connectors.
  • If accidentally dropped or knocked install a new module.
  1. Disconnect the battery ground cable

    Refer to: SPECIFICATIONS .

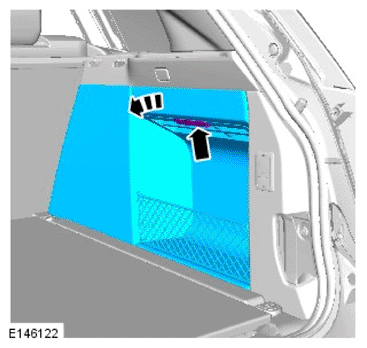

  2. G11692844

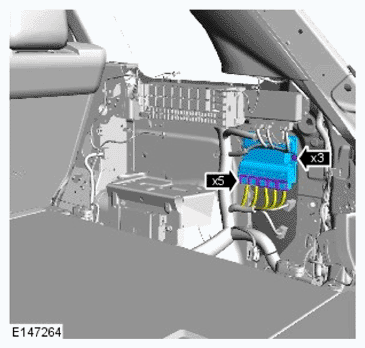

  3. G11692863
