Removal And Installation: Removal

WARNING: A small amount of air maybe released when removing the air line connector.
CAUTION:
  • Make sure that the component is clean and free from foreign material.
  • Make sure that all openings are sealed.

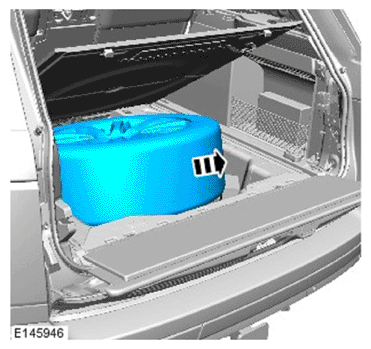

  1. G11692843
    • Remove the spare wheel.
  2. Disconnect the battery ground cable

    Refer to: SPECIFICATIONS .

  3. G11692844

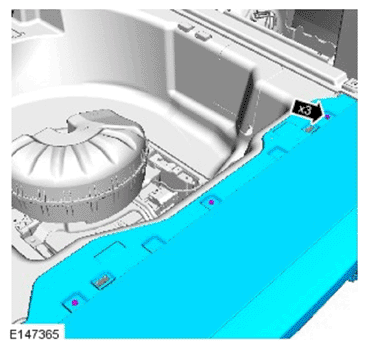

  4. G11692845

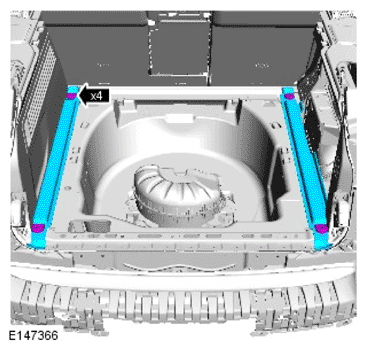

  5. G11692846

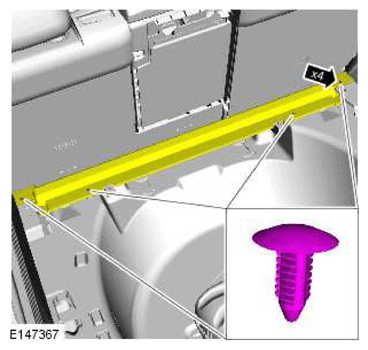

  6. G11745367

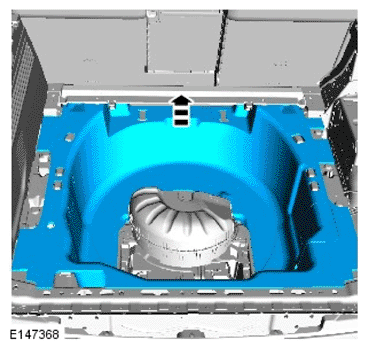

  7. G11692848

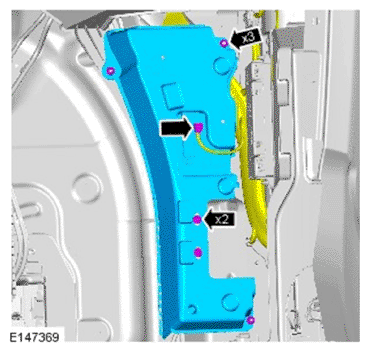

  8. G11692849

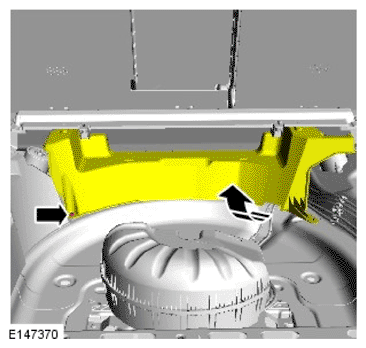

  9. G11692850
  10. NOTE: Discard the air line connector.

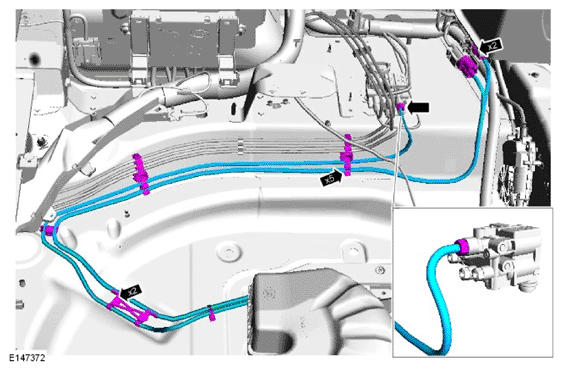

    G11692851

    Refer to: AIR LINE CONNECTOR .

    Renew Part: Air line connector(s) Quantity: 1  .

    Torque Specification: 4.5 Nm

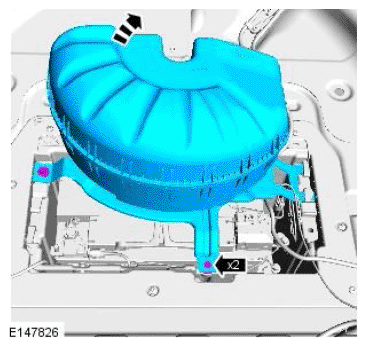

  11. G11692313

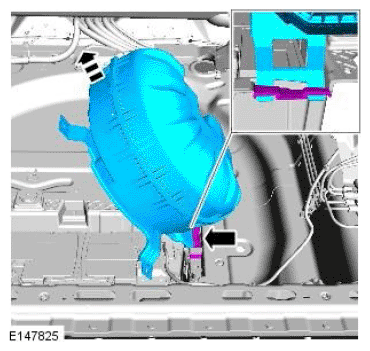

  12. G11692314
