Removal And Installation: Installation

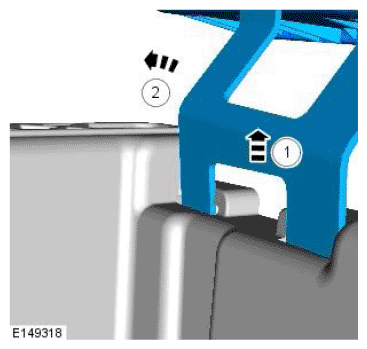

  1. CAUTION: Make sure the component is correctly located on its mounting bracket. Lift the component by 10 mm before lowering into position.
    G11692325

    To install, reverse the removal procedure.

  2. Refer to: AIR LINE CONNECTOR .

    Torque Specification: 4.5 Nm
