Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: REAR BUMPER COVER .
  3. NOTE: Repeat the step for the other side.

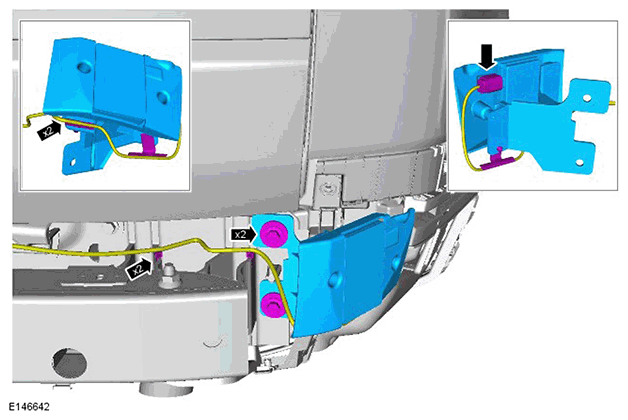

    G11758116

    Torque Specification: 55 Nm

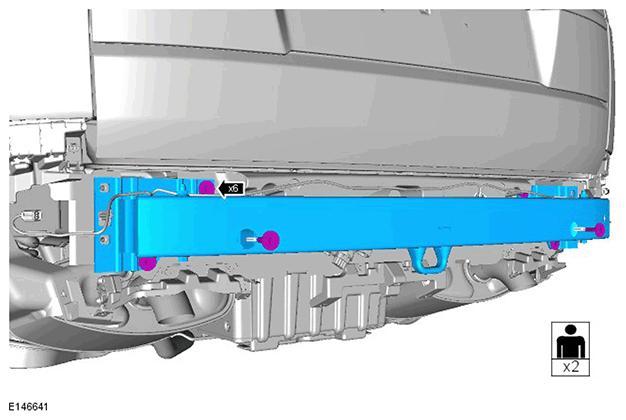

  4. G11758117

    Torque Specification: 55 Nm
