Removal And Installation: Removal

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

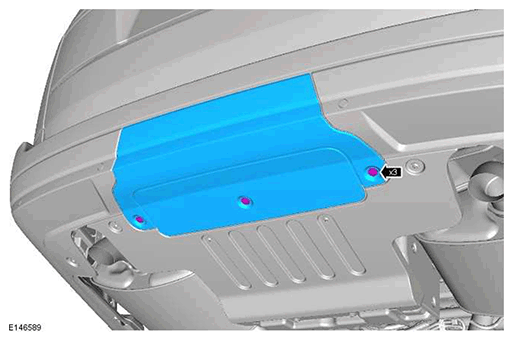

  2. G11758119

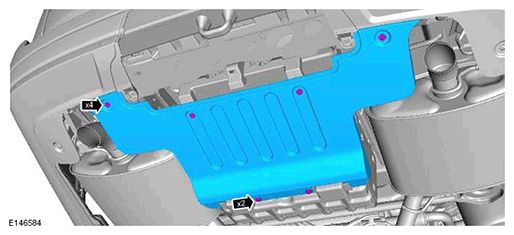

  3. G11758120

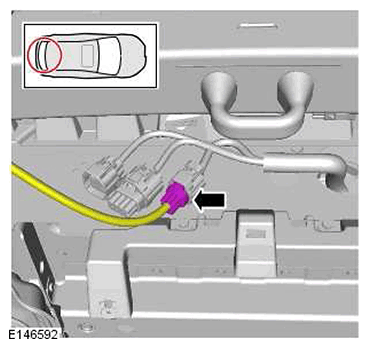

  4. G11758121
  5. NOTE: Repeat the step for the other side.

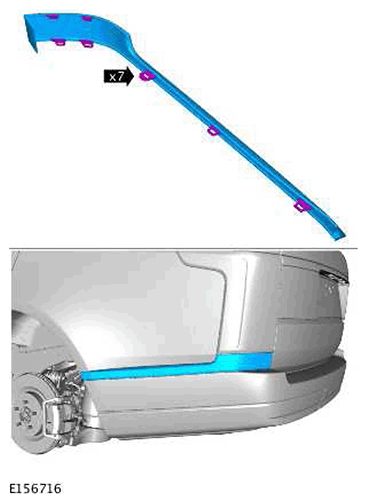

    G11758122
  6. NOTE: Repeat the step for the other side.

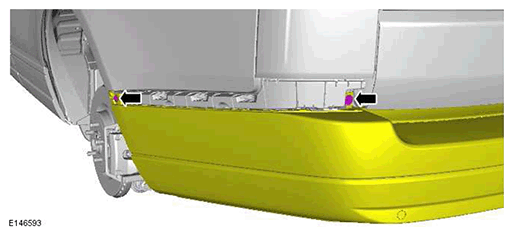

    G11758123
  7. NOTE: Repeat the step for the other side.

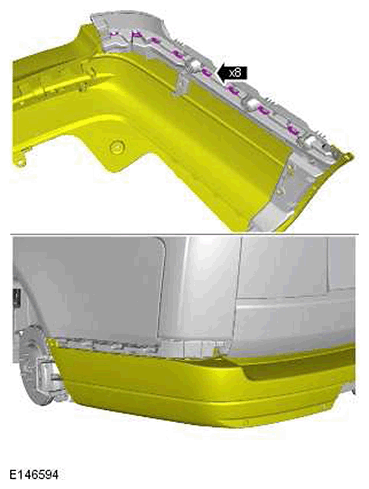

    G11758124

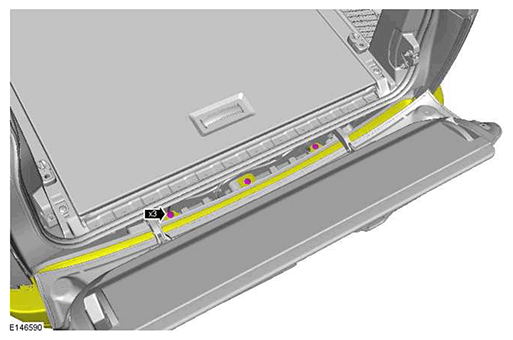

  8. G11758125
  9. NOTE: Repeat the step for the other side.

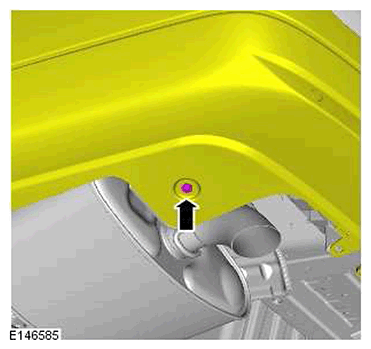

    G11758126

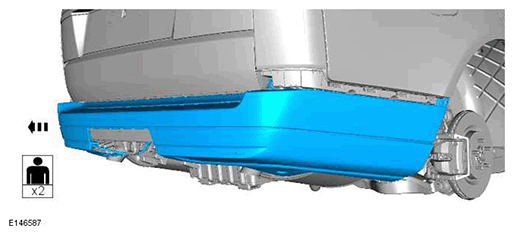

  10. G11758127
  11. NOTE: Do not disassemble further if the component is removed for access only.

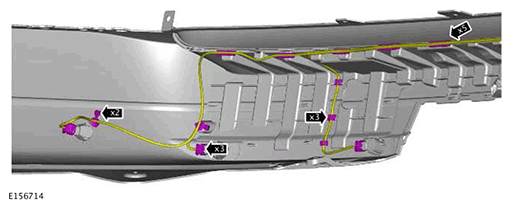

    G11758128

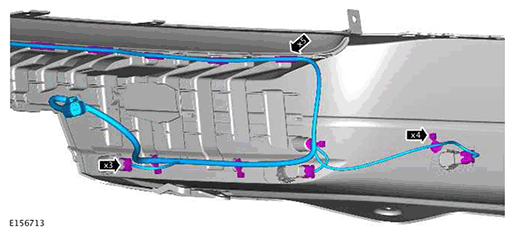

  12. G11758129
  13. G11758130
  14. NOTE: SV Autobiography only.

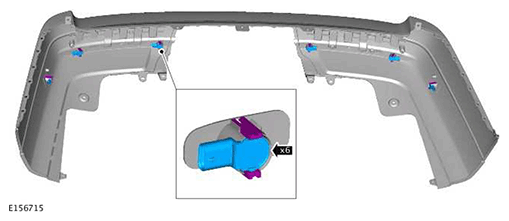

    G11758131
  15. NOTE: SV Autobiography only.
    G11758132
