Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

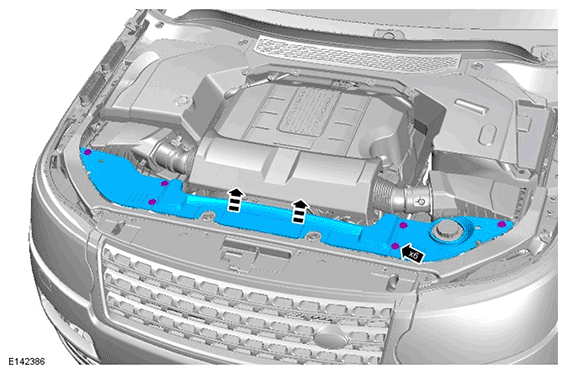

  2. G11693941
  3. NOTE: The step must be carried out on both sides.

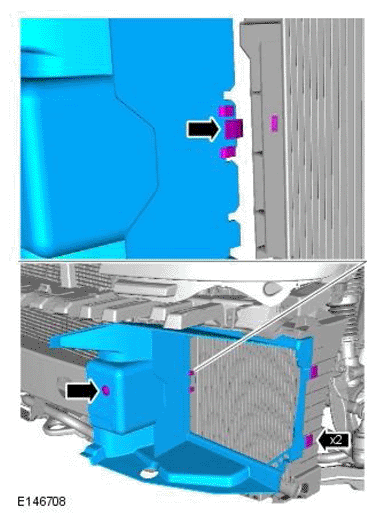

    G11704623

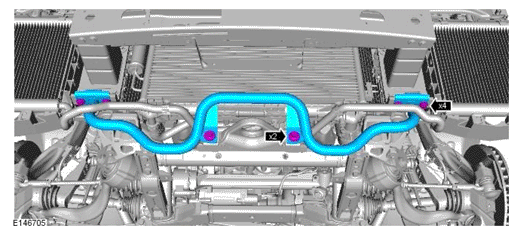

  4. G11704625

    Torque Specifications:

    M10 45 Nm

    M12 90 Nm

  5. CAUTION: Be prepared to collect escaping coolant.

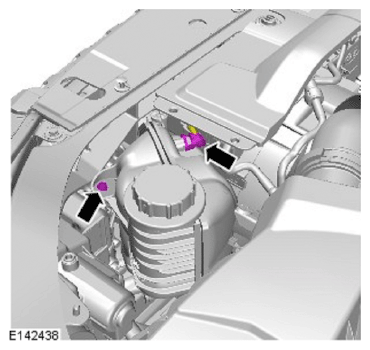

    G11715370

    Torque Specification: 9 Nm

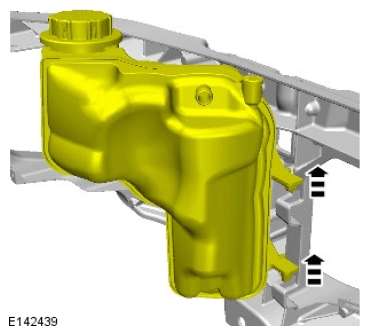

  6. G11715371

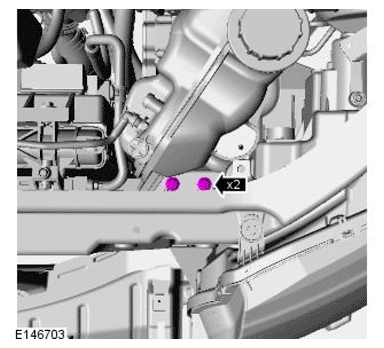

  7. G11704628

    Torque Specification: 30 Nm

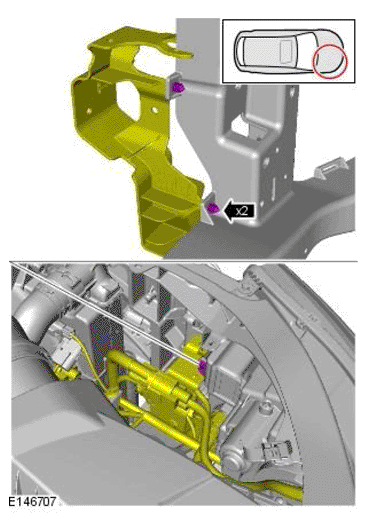

  8. G11704629

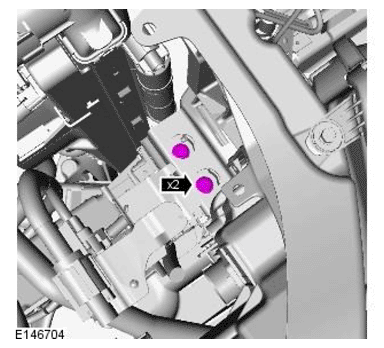

  9. G11704630

    Torque Specification: 30 Nm

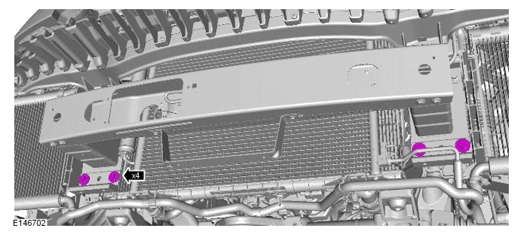

  10. G11704631

    Torque Specification: 55 Nm

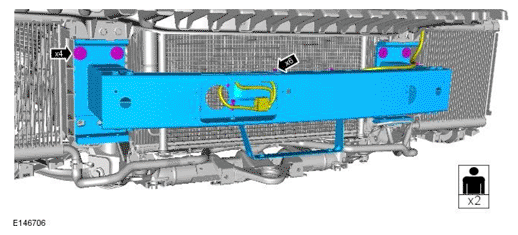

  11. G11704632

    Torque Specification: 55 Nm
