Removal And Installation: Removal

All vehicles

1. WARNING: Make sure to support the vehicle with axle stands.

   Raise and support the vehicle.

2. Refer to: FRONT BUMPER LOWER COVER .

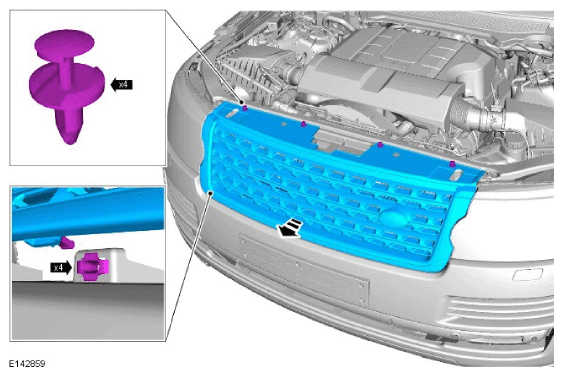

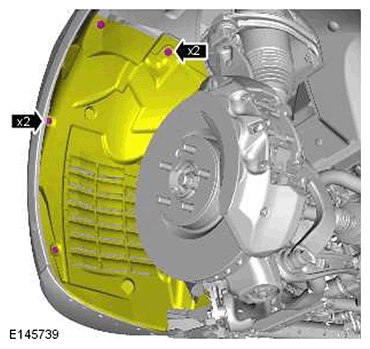

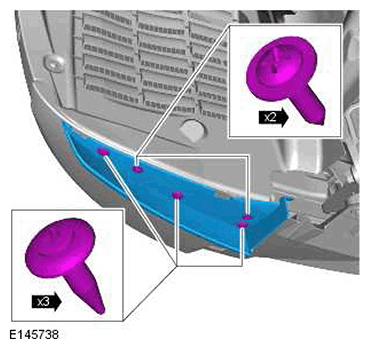

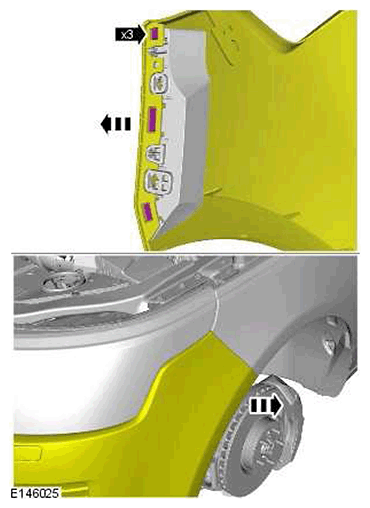

4. NOTE: Repeat the step for the other side.

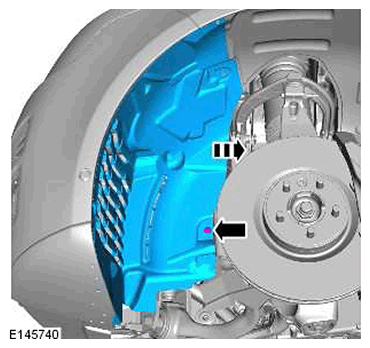

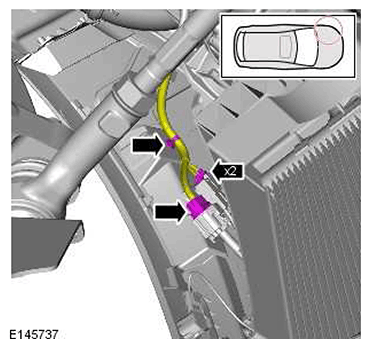

5. NOTE: Repeat the step for the other side.

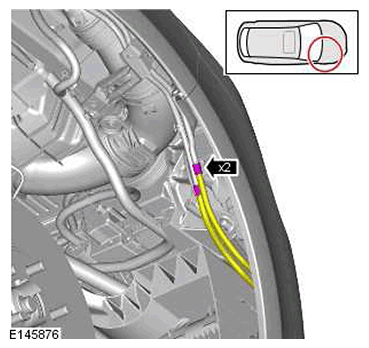

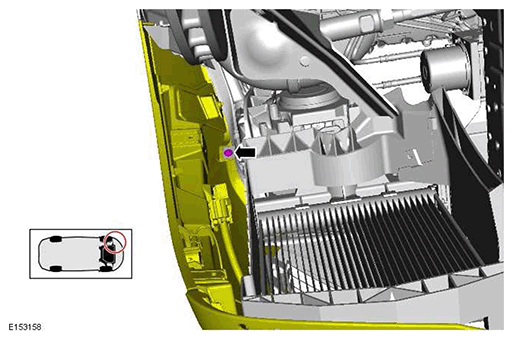

6. NOTE: Repeat the step for the other side.

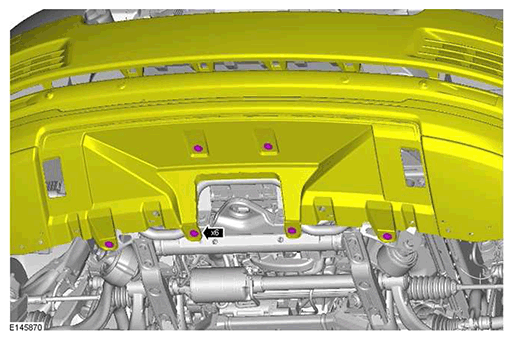

8. CAUTION: Be prepared to collect escaping fluids.

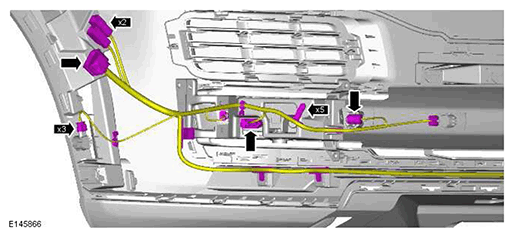

10. NOTE: Repeat the step for the other side.
11. NOTE: Repeat the step for the other side.

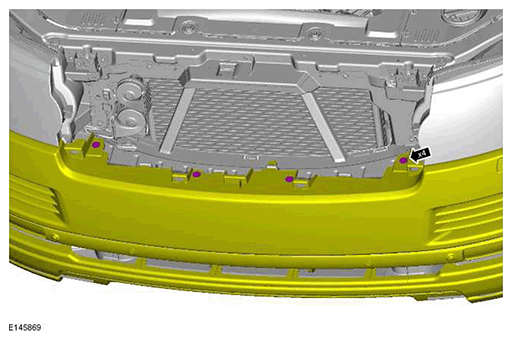

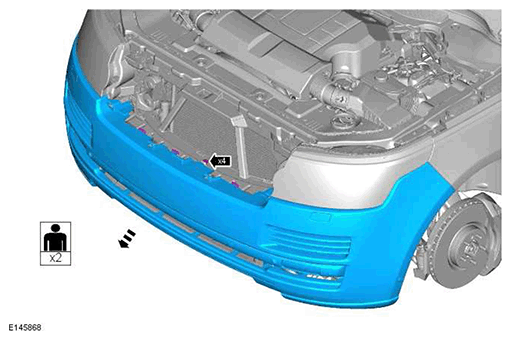

13. CAUTION: Make sure to protect the paintwork.

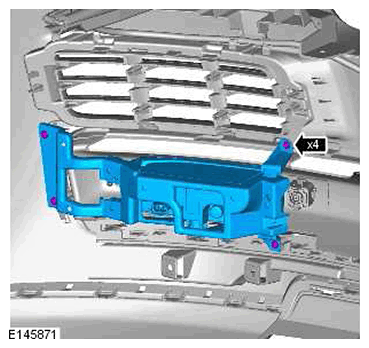

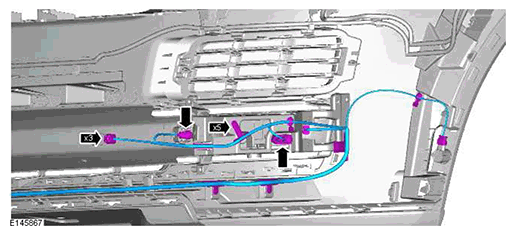

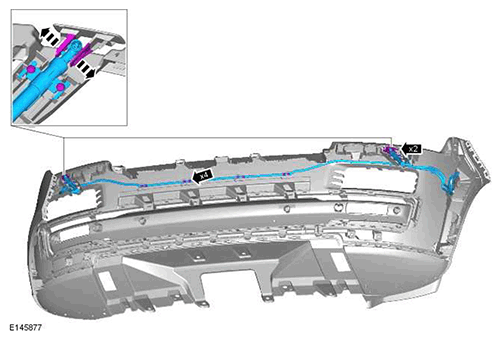

14. NOTE: Do not disassemble further if the component is removed for access only.

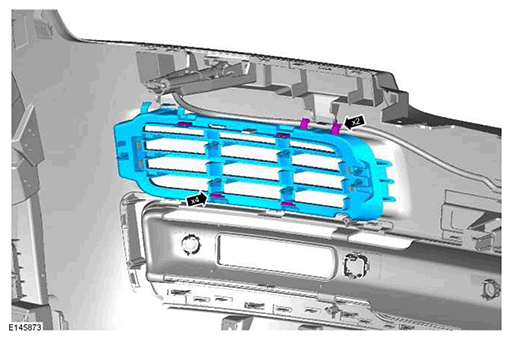

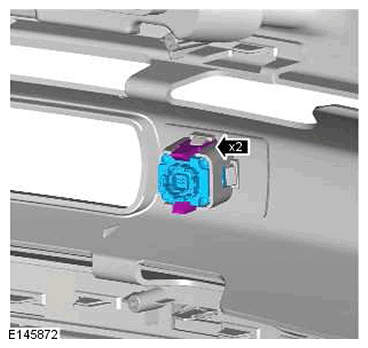

16. NOTE: Repeat the step for the other side.
17. NOTE: Repeat the step for the other side.

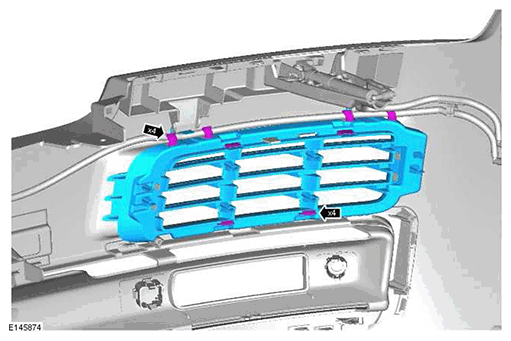

19. CAUTION: Use Loctite 3090 or 3092, meeting the correct market specification.
20. CAUTION: Use Loctite 3090 or 3092, meeting the correct market specification.

    SV Autobiography only

21. Refer to the appropriate Autobiography black front bumper cover insert service information.
    NOTE: The new bumper cover will require modifying to allow installation of the brake disc cooling ducts. The following steps detail how to make a template for cutting the bumper cover and will need to be carried out on both sides of the bumper cover.

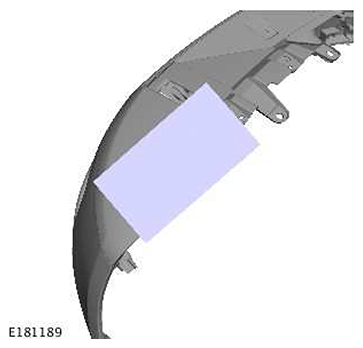

22. Position a sheet of A3 (297mm x 420mm) paper over the bumper cover and secure with tape.

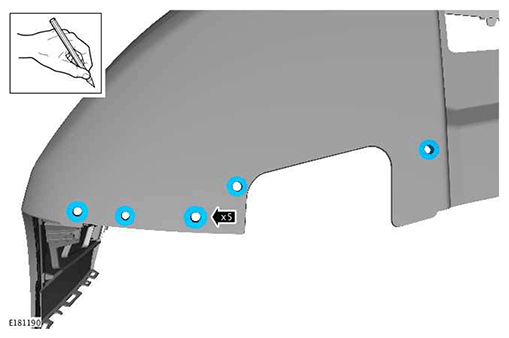

23. Using a pencil, pierce the paper through the brake disc cooling duct mounting holes.

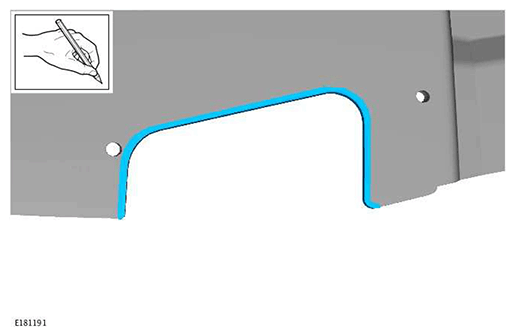

24. Mark the outline of the bumper cover recess on the paper.

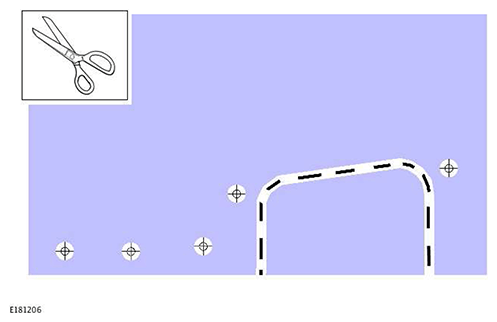

25. Carefully remove the paper from the bumper and cut out the recess. The template is now ready for use.
