Removal And Installation: Installation

SV Autobiography only

  1. A1. Position the template onto the new bumper cover making sure all holes are correctly aligned and secure with tape.

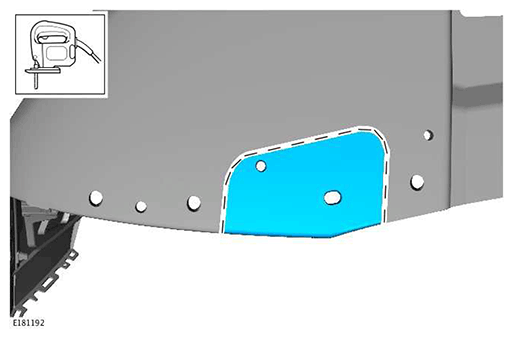

  2. G11758111

    Cut the bumper cover using the template as a guide.

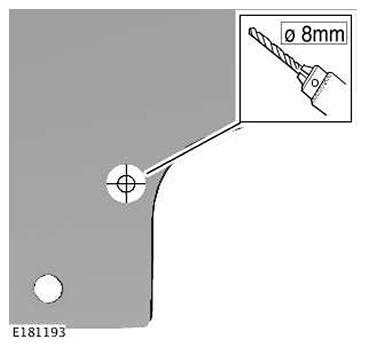

  3. G11758112

    Drill the additional brake disc cooling ducts mounting hole using the template as a guide.

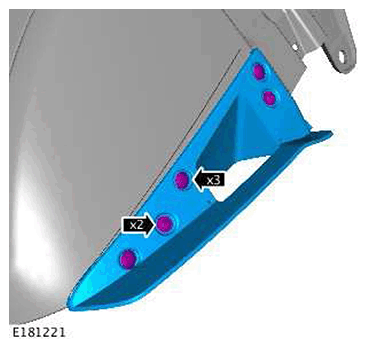

  4. G11758113

    Install the brake disc cooling ducts.

    All vehicles

  5. To install, reverse the removal procedure.
