Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
  3. Refer to: ACCESSORY DRIVE BELT - V8 S/C 5.0L PETROL .
  4. NOTE: If equipped.

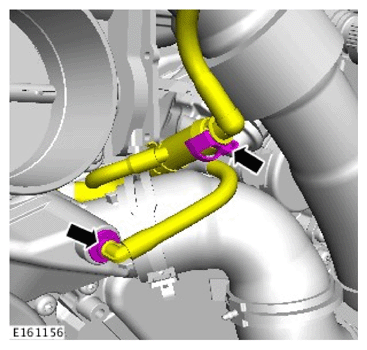

    G11709470
  5. G11709238
  6. G11709237
  7. G11601272

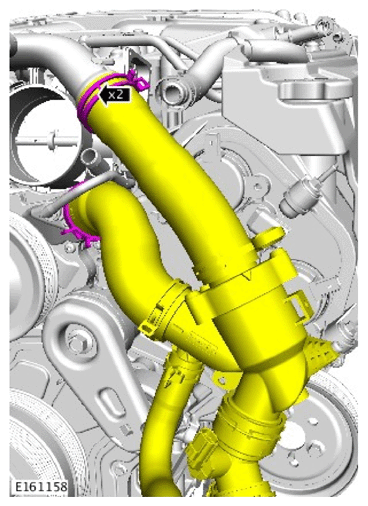

  8. G11709474
  9. NOTE: If equipped.

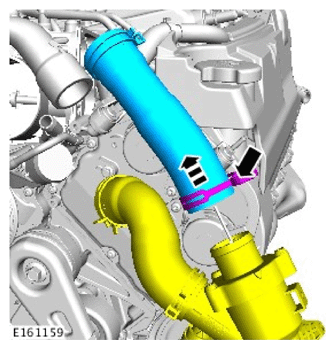

    G11709475
  10. G11709476
  11. WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.
    CAUTION: Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.
    G11601244
  12. NOTE: If equipped.

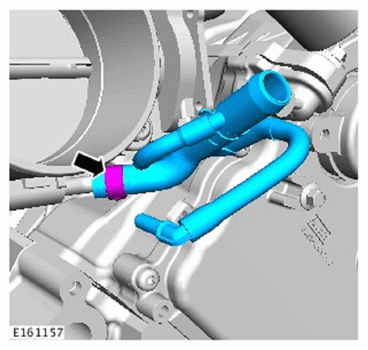

    G11709478
